100% Genuine SPX Autoboss Elite Super Scanner Support Multi-brand Vehicles Autoboss V30 Elite

Specifications

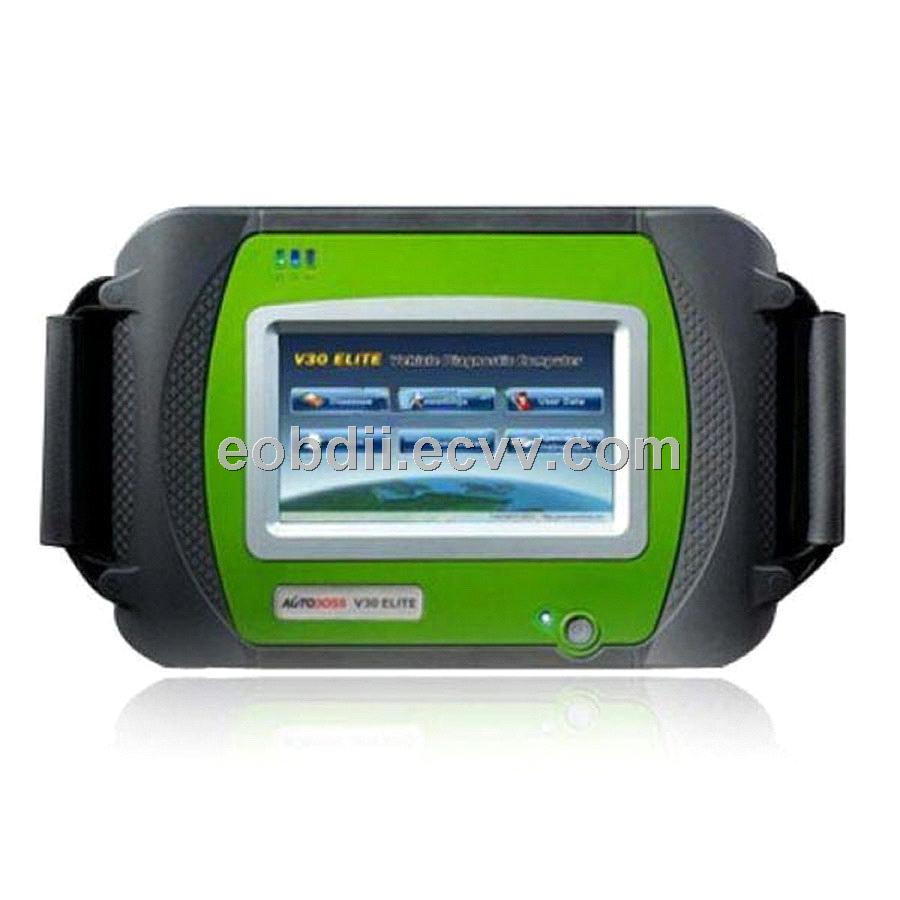

AUTOBOSS V30 Elite Super Scanner

AUTOBOSS V30 Elite Super Scanner, it is More than just reading & clearing fault codes - goes far beyond and accesses the complete vehicle, including: drive line, chassis, body, and the networking/communication modules

Supported Languages: English, Spanish, Italian, German ( Only Can Choose One Language )
Supported OS:Windows XP, Win 7
One Year Free Update Online
Warranty:1 year

Autoboss V30 Elite Super Scanner Description:
Autoboss V30 Elite Super Scanner is a new scanner made by Autoboss(SPX), The V30 coverage Tspans over 57 manufacturers with up to 148 systems per vehicle. Best of all, the V30's vehicle coverage continues to grow, with simple internet-ready updates accessible to you at the click of a button.

Autoboss V30 Elite Super Scanner Function:
Quick test function to diagnose the complete vehicle
Cover more than 57 makes, 40,000 vehicle systems
More than just reading & clearing fault codes - goes far beyond and accesses the complete vehicle, including: drive line, chassis, body, and the networking /communication modules
Live data and graphing, performs actuations and adaptations
Electronic parking brake, Service light reset and much more
Cutting edge operation system: Windows CE
European & Asian vehicles with dealer-level power
Read & change ECU coding
Coding of the new control modules
Internet update function
Testing report saving function
Built-in Mini Printer
All necessary cables and adapters included
One universal connector for most vehicles, including all CAN vehicles

Autoboss V30 Elite Special Functions:
Self-Learn function enables the scanner to learn and save correct values for ECU live data parameters from a vehicle in good condition. For example, it will learn that on a Vauxhall Astra 1.7 diesel the coolant temperature sender should be reading between 0.5 to 4.5 V.
Comparison function can compare the learned values against the vehicle you are working on and highlight values which are out of range.
Record function enables users to record the vehicle data when testing the vehicle. And users can send the recorded data back to AUTOBOSS head office for analysis, which will help users solve problems faster.Navigation bar makes this tool more user-friendly.

Autoboss V30 Elite Covering car diagnostic tool latest and early car models of Asian, European, American and domestic.
-You can use 80%-90% functions of the original scanner on many cars.
-Supporting CAN- BUS diagnosis of Volkswagen / Audi, Ford, Mazda, Nissan, Hyundai / KIA.
-Built-in high / low speed CAN- BUS and single CAN- BUS.
-Making all CAN- BUS systems available with only one connector.
-Supporting 5 OBDII protocols and 9 modes.
-Nissan idle speed adaptation.
-Immobilization system generation III adaptation of Volkswagen.

The Equipment can be used as original one with most of cars.80%-90% functions of the original equipment can be used in a few car models.
VW / Audi: All CAN- BUS system after 2005
GM: The testing function has covered 90% of the GM original equipment
Toyota: The actuation function is the same to the original equipment
Nissan: Covering 95% function of the original equipment
Honda: Only system selection is needed for diagnostic scanning
Hyundai / KIA: More than 90% function coverage of the original equipment
All systems of all car models are available
Opel: 17 models can be tested and the basic function makes no difference of the original equipment

AUTOBOSS V30 Elite Specification:
CPU: SAMSUNG ARM9 2410A, 200MHz
Memory: 64M
Flash card: SD card, 8G
Display: 7'' Wide VGA (800×480) Ultra Bright TFT
Power supply: DC 8~15V, AC 110~250V 50Hz
Port: Diagnostic port, COM port, USB port, Power port
Operating system: WINDOWS CE
Storage temperature: -30~85oC
Working temperature: -10~70oC
Humidity: <90%0

Autoboss V30 Elite Network Administration Parameter:
Network output port     6, Aviation plug
Network connection     RS485
Signal testing port     6
Communicating interface with PC     RS232
Power supply     DC, 8-12V; AC, 110-250V 50Hz

Autoboss V30 Elite Terminal Parameter:
Network input port     1,Aviation plug
Network output port     1,Aviation plug
Network connection     RS485
Signal testing port     6
Communicating interface with V30     RS232
Diagnostic connector with V30     OBDII-16
Power supply     DC, 8-12V; AC, 110-250V 50Hz

Autoboss V30 Package List:
1pc x Autoboss V30 Elite Main unit
1pc x 8G SD CARD
1pc x OBDII-16
1pc x BMW-20
1pc x MARELLI-3
1pc x GM/DAEWOO-12
1pc x KIA-20
1pc x MAZDA-17
1pc x TOYOTA-17
1pc x TOYOTA-22
1pc x MIT-12+16
1pc x HONDA-3
1pc x AUDI-4
1pc x NISSAN-14
1pc x CITROEN-16C
1pc x Benz-14 Connector
1pc x FIAT-16
1pc x Benz-4 Connector
1pc x BENZ-38
1pc x Main Cable(2m)
1pc x Battery Cable
1pc x Cigarette Cable
2pc x FUSE 5A 30*6
4pc x FUSE 5A 20*5
1pc x DC Adapter
1pc x Power cable
1pc x SD Card Reader
2pc x Printing paper
