Wenzhou Yika Electric Co., Ltd.
China Manufacturer with main products: Surge Arrester, Fuse Cutout, Insulator, Surge Protective Device, Disconnector Switch, Current Limit Fuse, Fuse Link |

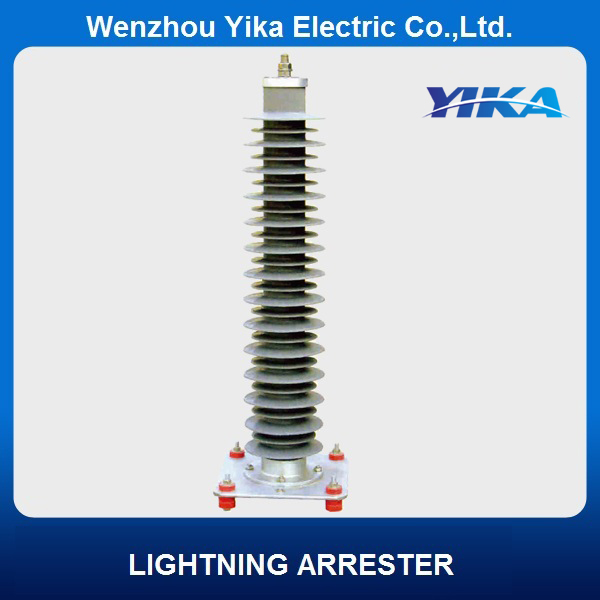

72KV Station type Arrester, Lightning Arrester
| FOB Price: | 200.00 - 500.00 USD/Piece |
|---|---|
| Supply Ability: | 100,000 Piece/Pieces per Year |
| Shipping: | NINGBO, SHANGHAI PORT |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | South America, Southeast Asia, Africa, Mid East, Eastern Asia |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | wooden case |
Quick Details
- Model Number: HY5WZ-72, HY10WZ-72
- Brand Name: YIKA
Specifications
| 5KA Gapless Arrester Electrical Parameter | |||||||
| type | Rated Voltage | MCOV | Max.Residual Viltage | 2ms square wave impulse withstand current | High current impulse withstand 4/10μs | ||
| Steep current impuise1/4μS | Nominal current lmpulse 8/20μs | Switching current lmpulse30/60μs | |||||
| kV | kV | kV | kV | kV | A | kV | |
| HY5WZ-72/184 | 72 | 57 | 211 | 184 | 165 | 600 | 100 |
| 10KA Gapless Arrester Electrical Parameter | |||||||
| type | Rated Voltage | MCOV | Max.Residual Viltage | 2ms square wave impulse withstand current | High current impulse withstand 4/10μs | ||
| Steep current impuise1/4μS | Nominal current lmpulse 8/20μs | Switching current lmpulse30/60μs | |||||
| kV | kV | kV | kV | kV | A | kV | |
| HY10WZ-72/184 | 72 | 57.0 | 211.0 | 184.0 | 165 | 600 | 100 |
