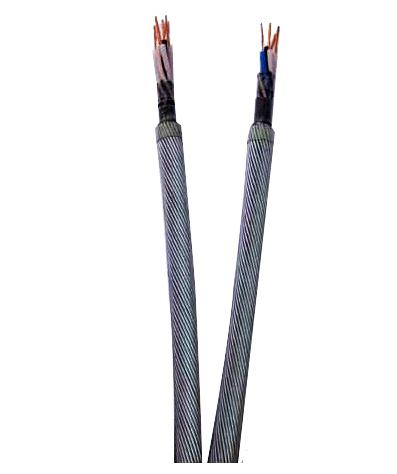

Logging Cable

FOB Price:	1.00 - 10.00 USD/Meter
Supply Ability:	100,000 Meter per Month
Payment Terms:	L/C, T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Medium Voltage Aerial Bundled Cable

Price:1.00-3.00 USD/Meter

Min. Order:100 Meters
flexible cable AVRS2*0.12

Price:0.16-0.22 USD/Meter

Min. Order:100 Meters
Equivalent Tyco TE 1-1658528-1 Cable to DB9 Rib...

Price:0.30-1.00 USD/Piece

Min. Order:1000 Pieces
Automotive Rubber Sheath

Price:1.99-2.99 USD/Piece

Min. Order:100 Pieces
Extension Line

Price:100.00-10000.00 USD/Piece

Min. Order:3000 Pieces
SATA Power Cable

Price:0.13-0.54 USD/Pound

Min. Order:1000 Pound

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Brand Name: Wanquan
Model Number: 0086 18693173363
Insulation Material: PE
Type: Low Voltage
Application: Mining
Conductor Material: Copper
Jacket: PE

Specifications

Ⅰ Application
The electro-mechanical cable ,belonging to electric devices cable, is mainly used for bearing pulling strength, system power supply, signal transmission and depth control and all kinds of gas and oil well operations such as logging, perforation, coring, etc.

Ⅱ Performing Criterion
We produce according to the company standard (above SY/T6600-2004 and JB/T3302 Standard) and we can also produce as customers?requirements. At present, we can offer over 30 kinds of electro-mechanical cables with four temperature grades of150℃, 180℃, 232℃ and 260℃. The diameter ranges from 5.6mm to13.2mm with number of cores between one and seven.

Ⅲ Classification

ⅰ Classification according to outer diameter
5.6 mm electro-mechanical cable;

8.0mm electro-mechanical cable;

11.8mm electro-mechanical cable;

12.7mm electro-mechanical cable

ⅱ Classification according to conductors

Mono conductor electro-mechanical cable;

3-conductor electro-mechanical cable;

4-conductor electro-mechanical cable;

7-conductor electro-mechanical cable.

ⅲ Classification according to temperature ratings

Nominal temperature electro-mechanical cable: temperature rating from -30 to 150℃, continuous operating temperature125℃

High temperature electro-mechanical cable: temperature rating from -50 to 260℃, continuous operating temperature 232℃
