Zhengzhou Protech Mechanical Equipment Co., Ltd.
China Manufacturer with main products: Tube Furnace, Muffle Furnace, Dental Furnace, CVD System Furnace, Vacuum Tube, Smelting Furnace |
high tempeature atmosphere furnace
| FOB Price: | 3,999.00 - 5,999.00 USD/Set |
|---|---|
| Supply Ability: | 600 Set/Sets per Month |
| Shipping: | within one week |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Related products from verified members
-
Price:20,000.00-26,000.00 USD/SetMin. Order:1 Set -
Price:8472.00-22592.00 USD/PieceMin. Order:1 Piece -
Price:200,000.00-500,000.00 USD/SetMin. Order:1 Set
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | wooden case |
Quick Details
- Brand Name: protech
- Model Number: PT-1200
Specifications

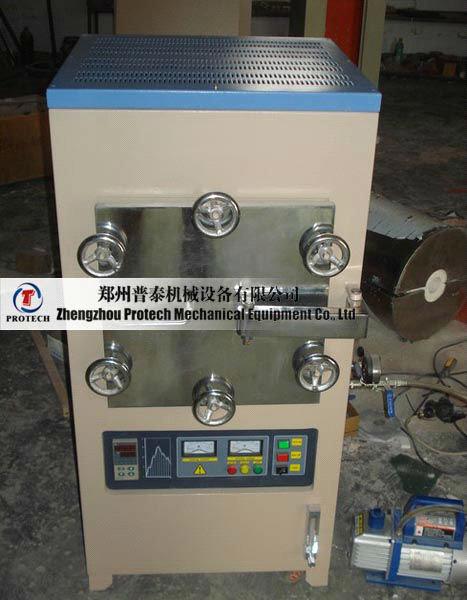

Application of atmosphere furnace
PT series box atmosphere furnace can protect materials from oxidation and decarburization with flowing Nitrogen, Argon and other Inert gas. It's an ideal furnace for sintering, reducing with inert-atmosphere in labs of university, Research Institution and industrial company.
Technical parameter
Furnace construction:PT-1200 type high purity ceramic fibre insulation (energy saving 40% and weight lighter about 30% than old furnace ).
Double layers steel casing with fan cooling, to ensure the surface of furnace below 50 ℃.
Perfect sealing furnace door and easy open
Chamber size:100*100*100mm
Power:700W
Voltage:AC 110V or AC 220V 50/60 Hz
Max.temp.:1200deg C(<2 hour)
Working temp.:1100deg C
Max.heating rate:30deg C/min
Temperature controller:PID automatic control and auto-tune function.
Mutli programmable segments for precise control.
Built in protection for over-heated and broken Thermal couple.
Larger digital control panel for easy operation
Temperature Accuracy:+-1deg C
Heating element:Spring wires of Fe-Cr-Al Alloy doped by Mo
Thermal Couple:K type
Dimension:320*385*520mm
Weight:65kg
Warranty:One year limited warranty (Consumable parts such as thermocouple, o-rings and heating elements are not covered by the warranty, please order the replacements at related products below.)
