Hisuccess International Machinery Limited
China Manufacturer with main products: Roll Forming Machine, Rock Wool Production Line, EPS Production Line, XPS Production Line, AAC Production Line, Foam Production Line, Wood... |
Roofing Former
| FOB Price: | 15,000.00 - 40,000.00 USD/Set |
|---|---|
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Condition: New
- Brand Name: HISUCCESS
- Model Number: HIM-Roll Forming
- Machine Type: Beading Machine
- Raw Material: Sheet / Plate Rolling
- Material / Metal Processed: Stainless Steel
- Power: Cnc
- Automation: Automatic
- Extra Services: Welding / Brazing
- After-sales Service Provided: Engineers available to service machinery overseas
Specifications
Brief Introduction

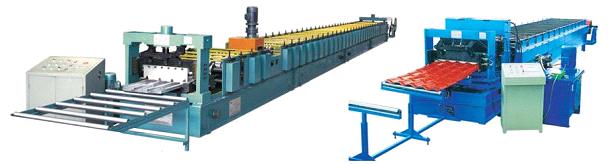

Roll Forming Machine can produce many kinds of high quality and good-looking metal products, such as C/Z purlines, Wall and Roof panel, Glazed tile, Floor deck, Door frame, High-way Guard-rail, Down pipe and so on. This machine is full-automatically controlled by PLC system and has beautiful appearance and strong structure. We can design and manufacture any kind of Roll Forming Machine according to the customer's requirements.
Main Configuration
Uncoiler / Leveling Organ / Forming Machine / Hydraulic Cutter / PLC Control System / Run-out Table
Main Parameters
ITEM | HIM-RF-760 | HIM-RF-828 |
Main Machine Power, kw | 7.5 | 7.5 |
Hydraulic Station Power, kw | 3 | 3 |
Roll station | 18 | 16 |
Thickness, mm | 0.4~0.6 | 0.4~0.6 |
Speed, m/min | 2~3 | 2~3 |
Uncoil Width, mm | 1250 | 1250 |
Control System | PLC | PLC |
Total Weight, mt | ≈11 | ≈11 |
Dimension (LxWxH), m3 | 11.5x1.2x1.3 | 10.5x1.4x1.3 |
