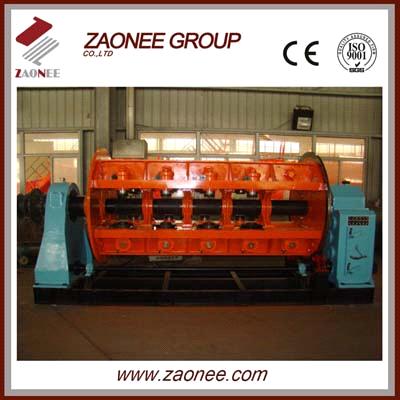

Rigid Frame Stranding Machine
| FOB Price: | 120,000.00 USD/Set |
|---|---|
| Supply Ability: | 100 Set/Sets per Year |
| Shipping: | 60 Days after the prepayment |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | seaworthy packing |
Quick Details
- Brand Name: ZAONEE
- Model Number: JLK1+6+12/630
Specifications
Main Features:
1. The machine is driven by 36 variable steps drive gear-box, with dual active, dual hauling capstan, its haul force is so strong that can reach 15t. Natural wire distribution for preventing abrasion damage of wire cores when stranding.
2.
Wire pay-off tension is controlled pneumatically to guarantee constant
tension in full loaded bobbin or empty bobbin. With automatic emergency
stop device, in case of wire break the device can control directly every
pay-off bobbin in the cage and the entire machine will automatically
stop at once.
3.
The machine can stranding the copper wire of 630mm2 above 90%
compressed intensity rate, which can meet the requirement of big
across-area XLPE cable.
4. Driven
by DC motor, the imported PLC and touch Screen (Siemens or Preface),
which is convenient for the operator to set and display the parameter on
the touch screen.
Technical Parameters:
|
No.
|
Item
|
Unit
|
Parameter
|
|
1
|
Stranding single wire Dia.
|
mm
|
CuΦ1.5—Φ4.5 |
|
2
|
Stranding single wire Dia.
|
mm
|
Al AlloyΦ1.5—Φ5.0
|
|
3
|
Stranding single wire Dia.
|
mm
|
AlΦ1.8—Φ5.0
|
|
4
|
Stranding single wire Dia.
|
mm
|
Other equivalent diameter of:Φ2.2—6.5
|
|
5
|
Max section area
|
mm2
|
Al 1400Cu 800
|
|
6
|
Cage rotate speed
|
r/min
|
40—156
|
|
7
|
Capstan wheel size
|
mm
|
Φ2500×2
|
|
8
|
Strand pitch
|
mm
|
55—1100
|
|
9
|
Haul off speed
|
m/min
|
6—44
|
|
10
|
Central pay-off bobbin size
|
mm
|
PND800-1600
|
|
11
|
Cage reel size
|
mm
|
PND710
|
|
12
|
Take -up reel size
|
mm
|
1600-3150 |
|
13 |
Machine Center height
|
mm | 1100 |
|
14 |
Total Length |
mm |
60000 |
|
15 |
Machine total weight |
kg |
/ |
|
16 |
Main motor Power |
kw |
185 |
|
17 |
Total Power
|
kw |
220 |
|
|
