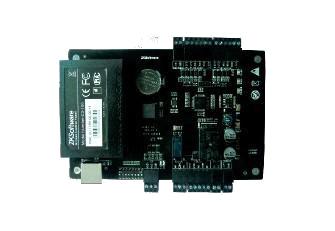

TCP/IP Based RFID Card One-door Access Controller C3-100
| Supply Ability: | 1,000 Piece/Pieces per Month |
|---|---|
| Shipping: | 3-12days, shipment at Shenzhen or Hongkong |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shenzhen in China |
| Packaging Details: | packed in cartons |
Quick Details
- Brand Name: ZK
- Model Number: C3-100
- Connection: Wiegand
- Dimension: 160(W)*106(H)
- Card Type: Mifare, ID, HID card
- Communication: RS485, TCP/IP
- Color: Black
- Baud Rate: 38,400bps (Recommended)/ 9600bps, 19,200bps, 57,600bps (selectable)
- CPU: 32bit MIPS
- RAM: 32Mbits
- Flash Memory: 256Mbits
- User: 30,000
- Event Buffer: 100,000
- Power / Current: DC 9.6V-14.4V, Rated Max.1A
- Reader Port: 4ea (26bit Wiegand, 8bit Burst for PIN)
Specifications
Specification:
Introduction: The Access Systems are built on flexible, open technology to provide management, real-time monitoring , and control of your access control system—all from a browser, with no additional software to install. Our secure Web-hosted infrastructure and centralized online administration reduce your IT costs and allow you to easily manage all of your access points in a single location. C3-100's versatile design features take care of present and future needs with ease and efficiency. It is one of the most rugged and reliable controllers on the market, with a multitude of built-in features. The C3-100 can communicate at 38.4 Kbps via RS-485 configuration or Ethernet TCP/IP networks. It can store up to 30,000 cardholders. SDK (Software Development Kit) is available for the customer to integrate the controller into existing access control software or to develop new software. Features: ．Multiple hardware protection measure There are over-current protection, over-voltage protection, reversal protection for the power supply and all the input and output terminal. ．Integration with Other Security SystemsC3-100 can be integrated with other security systems such as CCTV, fire alarm, BAS(building automation system) and other systems to configure total security system. ．Supports different wiegand reader The controller support different wiegand format, and can connect to different reader, including ID card reader and Mifare card reader．Input/Output Ports to Control Doors Connect with variety of sensors, alarms, exit buttons, electric lock and other devices. ．Variety of Communication Function Using either serial or TCP/IP communication, it provides reliable network system．B/S structure software It is easy to manage the system by browser from client PC. There is no need to install software on each client. ．Normal open after first punch card can be setup．Real-time Monitoring of Door status Using the management software, it allows real-time monitoring and control of door opening and closing of the whole system. ．Simple Access Control System Configuration．Interlock function Link different doors with special logic that one door is Open, others should be closed. ．Multi-card operation This function is used to manage visitors or to manage some special high secure place. The doors are opened when appointed number registered cards are read together. Anti-Passback．Duress Mode．SDK available The system integrator can use the SDK to integrate the hardware into their existing access control software system or to develop a new software.
Model:
C3-100
CPU:
32bit MIPS CPU
RAM:
32M bits
Flash Memory:
256M bits
User:
30,000
Event Buffer:
100,000
Power / Current:
DC 9.6V-14.4V, Rated Max. 1A
Reader Port:
4ea (26bit Wiegand, 8bit Burst for PIN)
Communication:
RS485, TCP/IP
Baud Rate:
38, 400bps (Recommended) / 9600bps, 19,200bps, 57,600bps (selectable)
Input Port:
6ea (Exit Button#1, Exit Button#2, Door Sensor#1, Door Sensor#2, Aux#1, Aux#2)
Output Port:
2ea (2 FORM-C Relay Output, SPDT5A@36VDC/8A@30VAC)
2ea (2 Aux FORM-C Relay Output, SPDT2A@30VDC)
LED Indicator:
Yes, LED indication for communication, power, status and punch card
Operating Temperature:
0°to +55°C
Operating Humidity:
10% to 80% relative humidity non-condensing
Dimension (L*W)mm:
160(W)*106(H)(single board ): 345(W)*275(H)*70(D)(with power supply and metal box)
Certification:
CE, FCC
