Shanghai FanYu Import & Export Co., Ltd.
China Manufacturer with main products: Abnormal Trailer, Low Boy Trailer, Low Bed Semi Trailer, Extendable Semi Low Loader, Extendable Flatbed Trailer, Modular Platfrom Trailer,... |
extendable semi low loader
| FOB Price: | 5,000.00 - 10,000.00 USD/Piece |
|---|---|
| Shipping: | 30 Days |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | BULK |
Quick Details
- Material: Steel
- Brand Name: FuHanWei
Specifications

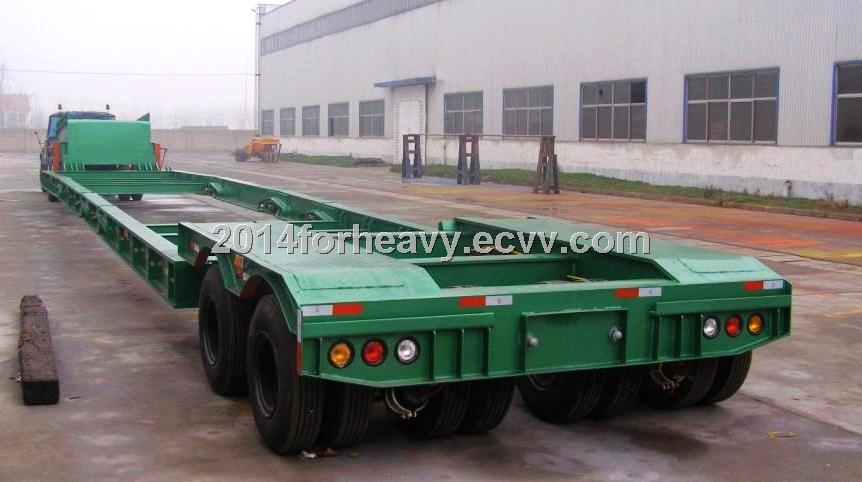

Extendable semi low loader
1. Rich trailer manufacturer experience
2. For 30T-60T load capacity
3. 3C ISO agreement
Detail Specifications:
Rated ( maximum) load mass (kg) | 35,000 |
Dead weight (kg) | 18,500 |
Maximum total weight (kg) | 53,500 |
Full load rating (maximum) speed (km/h) | 60 |
Dimensions (length * width * height) (mm) | (14,550+25,450)*2,700*1,500 (max 40,000) |
Thread (mm) | (8,350+25,450)+1,700+1,700 |
Tire size | 9.00R20 Radial (Double Star) |
Rim Size | 7.5-15 (10 holes) (Allen) |
Tires No | 12pcs |
Axle Type | Qingdao Yuek |
King Pin Size | 50#(50.8mm)(Jost) |
Frame Type | Flat bed |
Main beam material | HG60(>62n/MM2) |
Landing gear | 45ton(Jost),folding potion |
Steering angle | max 35 degree (manual) |
15 degree (automatic) | |
Distance of the king pin from the end of neck | 1200mm |
Min extend | 1,000mm |
Braking | Dual pipe control on all wheels |
Fifth wheel height (mm) | 1,345 (empty load) |
Truck Turning radium (mm) | 2,400 |
Lights & Reflectors | Lights & Reflectors "Electrical equipment 24 Volt, in accordance with the road traffic regulations |
Paint | sand blasting before painting |
2 coat of anticorrosive primer | |
Color as per request | |
Delivery Time | 30 working days after receiving your advance payment |
Payment Term | 30%TT advanced payment, the balance 70%TT balance is before delivery |
