Beijing Zhongcai Jianke Institute of Science & Technology for Building Materials
China Manufacturer with main products: Concrete Block/Brick Machine, Paving Brick/Block Making Machine, Constrution Equipment, Curbstone Making Machine, Brick Making Machine, Roof... |
Home
>Products Catalog > roof tile artificial stone terrazzo tile making machine > Multifunction Artificial Stone Making Machine ZCW-120
Multifunction Artificial Stone Making Machine ZCW-120
| FOB Price: | 30,160.00 - 32,540.00 USD/Set |
|---|---|
| Supply Ability: | 25 Set/Sets per Month |
| Shipping: | container |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | 25 days |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 year
- Certification: ISO9001,CE,BV,SGS
- Dimension(L*W*H): 3100*1600*2600mm
- Power: 7.5kw
- Voltage: 380v
- Model Number: ZCW-120
- Brand Name: jin laibao
- Capacity: 4000pcs/day
- Automatic: Yes
- Method: Hydraulic Pressure
- Processing: Brick Molding Machine
- Brick Raw Material: Cement
- Type: roof tile
- Condition: New
Specifications
Zhongcai jianke multifunction artificial stone making machine
Advantages:
1.High molding speed and large capacity, high rate of finished products, reliable performance and best performance/price ratio. The main machine is equipped with PLC computer control imported from Japanese Mitsubishi and HMI system. All process from feeding to finished products are automatic and designed in modules.
2.The hydraulic system of the main machine is all imported from Taiwan with stable performance and low consumption. It is one of the best in the same category.

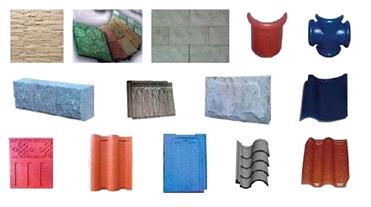

3.Multiple purposes: through changing moulds, it can produce various tiles besides high-grade color floor tiles such as terrazzo tiles,. artificial stones etc.
4.The concrete tile made using sand concrete and through mould-pressing molding is characterized by perfect structure, complete kinds, high density, high strength and accurate size, and is among the best of concrete products.
Product features:
1.Various colors and suitable for decoration
Technical parameter
Introduction:
ZCW-120 mould pressing concrete tile molding machine series and their production lines introduce the most advanced technology in China. Using plastic concrete in special dies and filtering unnecessary water with high pressure, the machine can produce tile adobes which become concrete tiles after maintenance and painting. The finished concrete tiles is of high strength, light weight and reasonable structure, overcoming the deficiencies of traditional dry concrete tiles made by roll molding, such as coarse surface, low strength and monotonous tile shape etc. In addition, the retainer plates used in mould-pressing molding machine can be made from cold rolled sheet because they are not pressed together with concrete. This can reduce the cost and increase the kinds, thus saving the investment for customers.
2.High strength, lightweight, low consumption, large single-piece area and high coverage.
3.Good insulation.
4.Anti-acid and rain, weathering-resistant, good weather ability and over-80 years service life expectancy.
5.Waterproofing and anti-permeation
6.Various kinds
7.Widely used. Products can be used in various buildings, practical and decorative.
Product size
424*337mm
Moulding speed
8-10 pcs/min
Output per shift
4000pcs/day
Power of main machine
7.5kw
Moulding type
Pressing and filteering
Moulding pressure
120T
Dimensions of main machine
3100*1600*2600mm
Weight
6T
Persons
6
Items of investment
| Name | Quantity |
| ZCW-120 Main Machine | 1 |
| Free mould | 1 |
| Main Mixer | 1 |
| Wheel rolling mixer | 1 |
| Steel Pallet | 1000 |
| Special shaped mould | 7 |
| Air compressor | 1 |
