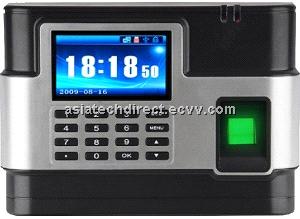

ML-FP10 Fingerprint Time Attendance, battery powered back up/fingerprint access control system

Description

Based on ARM9 low-consumption industrial architecture, accompany with the powerful 200M basic frequency of ARM9 main chip, ML-FP10 is a milestone which bring most advanced features in fingerprint machine market.

Description

Applications: residential, park, access, school and bank etc.

Standard Features

1.     ARM 9 architecture

2.     100MBPS TCP/IP

3.     Color dynamic LCD

4.     2 WG input ports

5.     USB host and USB slave communication (USB 2.0)

6.     Access Control functions

7.     Verification in less than 0.6 seconds

8.     3,000 users, 80,000 transactions

9.     Protection from Scratch and ESD( Electro Static Discharge)

10.   High quality optical sensor

11.   Concealed connectivity ports

12.   Built-in battery back up

13.   Built-in EM card reader with extension reader

Technical Specifications

·  Resolution: 500 dpi

·  Fingerprint Image Size: 16 x 16mm

·  Fingerprint Capacity: 3,000

·  Verification: fingerprint, password, ID Card

·  Log: 80,000

·  Comparing: 1:N , 1:1

·  FAR: < 0.0001%

·  FRR: < 0.01%

·  Regist Time: < 3 seconds

·  Verification Time: < 1 second

·  Voice: English, Chinese, German, French, Spanish, Korean, Japanese, Russian, Portuguese (Choose any one)

·  Communication: RS-485, TCP/IP, USB Host

·  Language: English, Chinese, German, French, Spanish, Korean, Japanese, Russian, Portuguese (Choose any one)

·  LCD: Dynamic color display

·  Name display: yes

·  Port: Wiegand 26.34 in/out, door lock

·  Operating Voltage: 5V DC

·  Operating Currency: 450Ma

·  Storage Temperature: -20°C~70°C

·  Operating Humidity: 20% ~60%

·  Storage Humidity: 20% ~80%·

·  125K RFID: 1 build-in and 1 connecting port

·  USB Pendrive for downloading: yes

·  Time Zone: yes

·  Anti-pass back: yes
