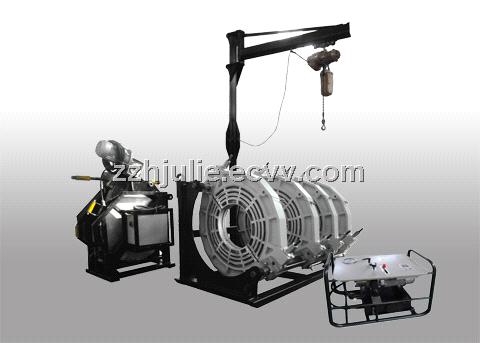

SKC-B800H hdpe plastic pipe welding machinery

Inquiry Now

Export Markets:	North America, South America, Southeast Asia, Africa, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	wood case

Quick Details

Application

Suitable for butt welding of plastic pipes and / or fittings made of PE,PP, and PVDF in worksite or workshop.

Features

Removable PTFE coated heating plate with separate temperature control system.

Electrical planning tool;

Be made of lightweight and high strength material; simple structure, small and delicate user friendly;

Low starting pressure ensures reliable welding quality of small pipes;

Separate two-channel timer shows time in soaking and cooling phases;

High-accurate and shockproof pressure meter in indicates clear readings.

Changeable welding position brings more convenience while various fitting.

Technical specifications

u Welding ranges: plastic pipes: 450mm－800mm

(450mm－500mm－560mm－630mm－710mm－800mm)

u Ranges of application: PE, PP and PVDF

u Working voltage: ～380V ±10%, 50Hz

Total power: 16.2 KW, including: planning tool: 2.2 KW, heating plate: 11 KW , hydraulic unit motor: 3KW (Pressure: 19Mpa; Capacity:14L, SDR 13.6)

u PTFE coated heating plate, adjustable knob for temperature control, difference in heating plate surface temperature ≤±7°.

u Environment temperature: －10° ～ 45° ;

u Electronic count-down timer for heating and cooling time ;

Whole machine consists of basic frame, heating plate, planning tool, hydraulic unit, support (for planning tool & heating plate) ;
