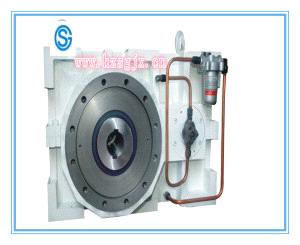

Sg 35- 10 Single Screw Gearbox

Supply Ability:	200 Piece/Pieces per Year
Payment Terms:	L/C, T/T

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Mid East, Eastern Asia
Place of Origin:	Zhejiang in China
Packaging Details:	wooden case

Quick Details

Brand Name: SG
Model Number: SG35

Specifications

SG series gearbox are transmission devices, which are specially designed for single-screw extruder with high precision, hard gear surface, accompany with thrust. Adopting the technical specifications stipulated in JB/T9050.1-1999, all ZLYJ gearboxes are designed accordingly.

Main Features of speed gear box:
1. The material of gear is the high strength alloy steel, it is manufactured by carburizing, quenching (and other heat treatment), grinding process at last. The gear is in high precision(6grade) and high hardness (reaches HRC54-62). Besides, it features low noise when operating.
2. It contains high bearing ability thrust, which is performed reliable and can withstand larger axial thrust...
3. All the items are treated by forced lubrication and cooling system except very few small specification products.
4. ZLYJ series gearbox is adpoted by six-side processing box. Its normal installation is horizontal, but can also changed to vertical installation according to customer's erquirement.
5. Efficiency transmission, low noise, long operation time
