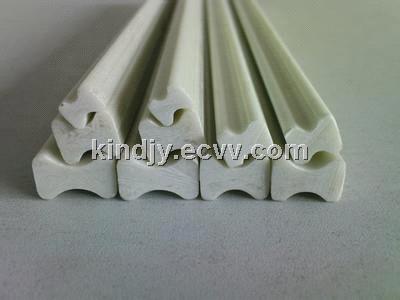

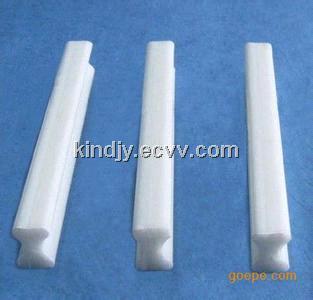

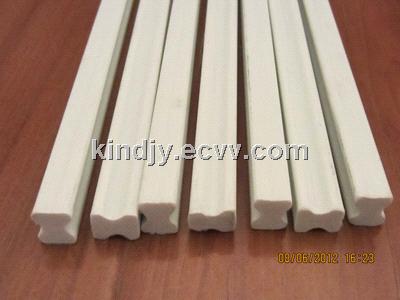

Polyester Fiber Wedge, Polyester Glass Fiber Wedge, Polyester Fibre Wedge. Insulation Polyester Wedge

Supply Ability:	100,000 Kilogram(s) per Month
Shipping:	by sea or by air
Payment Terms:	L/C, D/P, T/T

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	Carton

Quick Details

Rated Voltage: 30kv
Application: Low Voltage
Type: Insulation Paper
Brand Name: Kind
Model Number: 8*10mm etc.
Colour: white

Specifications

Polyester Fiber Wedge Polyester Glass Fiber Wedge Polyester Fibre WedgeInsulation Polyester Wedge

We specialized in manufacturing wedge,Polyester Fiber Wedge, Polyester Glass Fiber Wedge, Polyester Fibre Wedge.Insulation Polyester Wedge,Dry Transformer Wedge,Transformer wedge.

Polyester fiber wedge is made from polyester yarn varnished with epoxy resin heating and pressurizing and curing.with high mechanical and dielectric performance. Widely used in transformers,rectifler and other electrical equipment as insulation material.

Temperature classification:B,F,H grade.

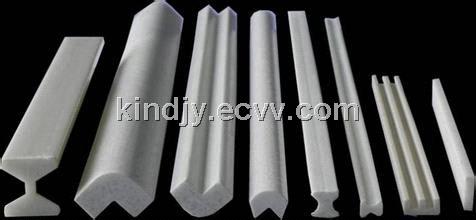

Normal size:

I-bar:8*10mm,6*6mm,6*8mm,5*10mm,6*10mm,8*8mm,10*10mm etc.

Riglet:10*2mm,10*3mm,10*4mm,10*5mm,19*6mm,40*20mm etc.

Corner::8*8mm,10*10mm,6*6mm etc.

Flat angle: 45*15*5mm,45*15*10mm

We can produce any sizes according client's request.

_{^{Polyester Wedge Test Report}}

Product Type and Name:H grade Polyester Wedge Standard:GB/T10064-2006

Manufacture:Sanmenxia Kind Ind.Trade Co.,LTD. Test date:16 Nov.2013

Serial number	Item			Unit	Standard	Result	Remark
1	Surface				Smooth surface,no bubble,top no crack,color uniform	Qualified
2	size			mm	10121000	Qualified
3	Water absorbtion rate			%	0.3	0.2
4	Tensile strength			Mpa	235	236
5	Parallel to the layer insulation resistance		Normal		1.0*10¹⁰	--
5	Parallel to the layer insulation resistance		185C24h		1.0*10¹⁰	--
6	Surface resistanceVoltage			Kv	12	16
7	Thermal stability(180C 5h)				No deformation,no crack,no bubble no significant change of color	Qualified
8	Bending strength	Normal temperature		Mpa	369	372
9	Bending strength	180C 5h		Mpa	310	320
10	Tensen strength			Mpa	108	118
11	Low temperature resistance				No mechanical and electrical property change in -40C environment	Qualified
12	Parallel to the layer breakdown voltage(in 902C transformer oil)			Kv	30	36
13	Scale of burning				v-0	v-0
14	Long-term heat resistance
Inspection instructions and conclusion: Qualified
