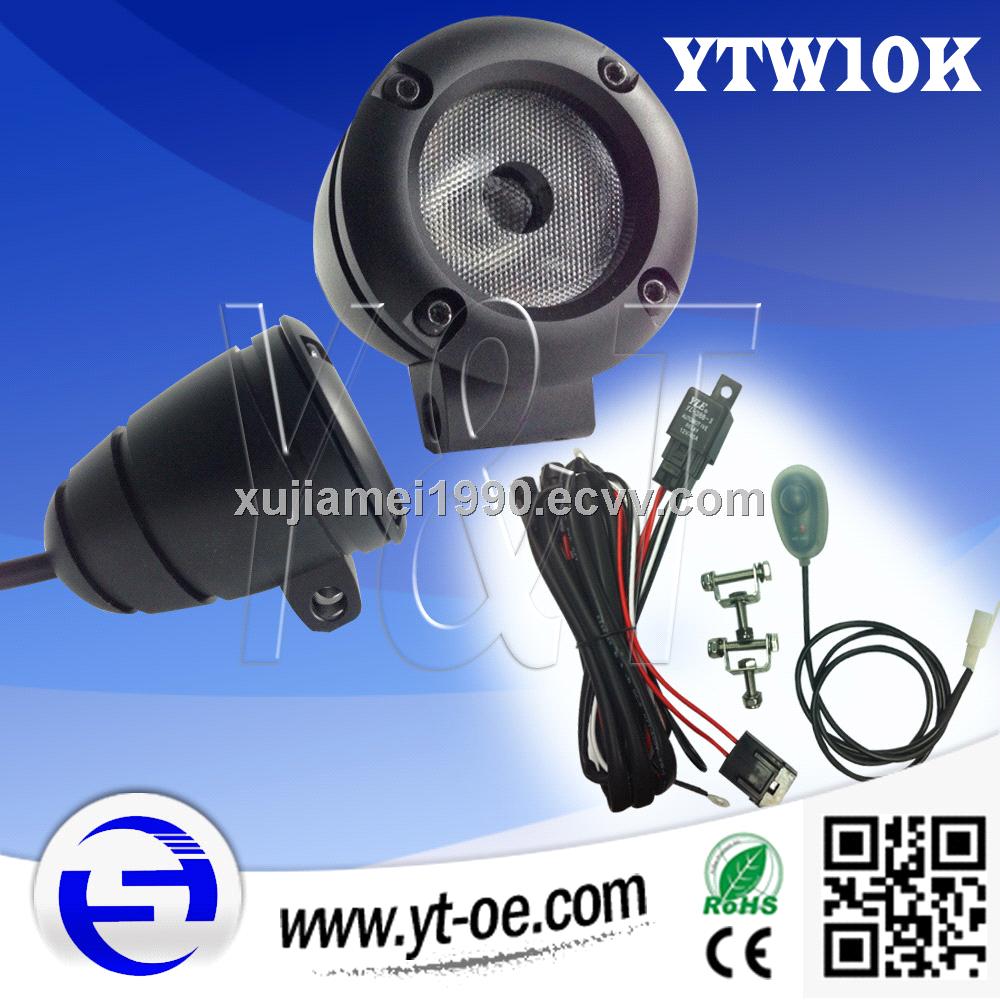

mini 10W Day Driving Fog DRL Lamp widely used in Trailer YTW10K
| FOB Price: | 30.00 - 80.00 USD/Set |
|---|---|
| Supply Ability: | 1,000 Set/Sets per Week |
| Shipping: | Samples within 1working day, Main order within 2 weeks |
| Payment Terms: | T/T, Western Union, Other, Paypal |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Single Packed in Blister Card, OR OEM packing |
Quick Details
- Brand Name: Y&T
- Model Number: YTW10K
- Input Voltage: DC10-30V
- Power Consumption: 10W
- Constant Current: 900mA@12V,400mA@24V
- Luminous Flux: 950~1080lm
- Lens: PMMA,light transmittance>93%
- Light Type: Flood Beam/Spot Beam
- Dimension(mm): 51.2(D)*61.0(W)*66.7(H)
- CCT: 6.000~7000K
- Working Temperature: -45~105degree
- Waterproof Rate: IP68
- Light Source Life Span: >50.000hrs
Specifications
mini 10W Day Driving Fog DRL Lamp widely used in Trailer YTW10K
" Y&T Newest 10W IP68 Cree LED Work Light YTW10---100% Original design & Patent Product "
1.DESCRIPTION:
1). Latest Product & Original Design: The YTW10 is designed as a Most Efficient Super-Mini LED Off-Road Light.
2). Wide Input Voltage: DC10~30V, which is suitable for different types of vehicles.
3). Cree High Performance LED chip: Ensure the long lifespan and superior illumination & stability.
4). High Luminous Efficiency: Output over 950 Lumen High Brightness Light, equivalent to 110W Halogen Light!
5). Materials: Pure Aluminum Housing + Virtually Unbreakable PMMA Lens + Stainless Steel Mounting Bracket with IP68 Rate, while the Aluminum face plate acts as radiant heat sink and can melts snow and ice.
6). Environmental-Friendly: Energy saving, no UV and IR radiation, Shock-Proof and Anti-Corrosion.
2.APPLICATIONS:
mini 10W Day Driving Fog DRL Lamp widely used in Trailer YTW10K is widely applied in Motorcycles, Dirt bikes, ATVs, UTVs,Offroad Vehicles, Excavators, Trucks, Mining, Tunneling & Caving Equipments, Road Construction, Outdoor Emergency Lighting, Ambulance & Fire Engine, Trains and Tanks etc.
3.What is the regulatory standard "IP68"?
IP68 is just one of many Ingress Protection ratings. The IP Code outlines a system of classification for the protection of electrical enclosures against the intrusion of foreign bodies such as tools, dust, moisture, etc. IP68 specifically means that a light is dust proof and is protected from temporary immersion in water 1-meter deep for 30 minutes.
4.What is the difference between raw and effective lumens?
Raw Lumens is the LED manufacturer's rated lumen value for an LED multiplied by the number of LEDs in a lamp. Effective Lumens is the number of lumens that actually make it through to the usable light pattern. The difference between raw and effective output is the result of the efficiencies/inefficiencies of the lamp's electrical and optical designs.
5.Specifications
Technical parameters Model NO. YTW10 Input voltage DC10~30V Constant Current 900mA@12V,400mA@24V Power consumption 10W Luminous Flux 950~1080lm LED Source Cree High Brightness XML-T6 LED Chip Certification CE, RoHS & FCC Optional Color Black/Gold/Silver Housing Materials Pure Aluminum Lens Virtually Unbreakable PMMA Lens, Light Transmittance>93%, Heat Resistance>90°C. Support Stainless Steel mounting bracket CCT 6,000~7,000K Optional Light Type Flood Beam(45deg) / Spot Beam(25deg) IP rate IP68 Dimension ( mm ) 51.2(D)* 61.0(W)* 66.7(H) Working temperature -45~105centi-degree Working humidity 10%~98% Light source life span >50,000Hrs Electrostatic Discharge Threshold (HBM) CLASS 2 Warranty 1 year in Normal Use
