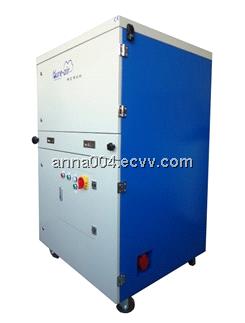

hot sell fume extraction system used for welding fume filtration

Payment Terms:	T/T

Inquiry Now

Related products from verified members

Replacement 10 Micron Machine Hydraulic Oil Hyd...

Price:1.00-3.00 USD/Piece

Min. Order:1,000 Pieces
Plastic Frame for Rigid Box Filters

Price:

Min. Order:
Weichai Engine Spare Parts,Air Filter,

Price:1.00-2.00 USD/Unit

Min. Order:1 Unit
Industrial Air Filter Dust Collector Filter Car...

Price:10.00-50.00 USD/Piece

Min. Order:10 Pieces
Filter,Man Roland 700 machine air filter,replac...

Price:8.00-15.00 USD/Piece

Min. Order:1 Piece

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Condition: New
Construction: Cartridge Filter
Filtration Grade: Hepa Filter
Brand Name: Pure-Air
Model Number: PA-3600DA
Dimension(L*W*H): 820*840*1450mm
Weight: 120kg
Certification: CE
Warranty: 1 year guarantee

Specifications

1, Operating Principle
1) Through the blower's gravity effect, wedling fumes/dust has been sucked to fume extractor's air inlet through universal dust hood, there's fire barrier in the air inlet, spark will be stopped by fire barrier once go through it;
2) Fume & gas will enter to dust setting chamber.Take use of gravity & upgoing airflow, big particles firstly fell to dust hopper, small particles fumes will becapture outside by cartridge;
3) Clean gas been filtrated by cartridge filter and flow into clean room,then exhuast outside from air outlet.When cartridge filter blocked, customer can removal it easily and reuse after cleaningsurface dust of cartridge filter by air compressor;
4) When the filter is about to blocked, connect compressed air pipe, open the ash clean button, use compressed air to blowback
surface dust of filter cartridge, then continue to use.

2, Main Components
? Metal Plate case;
? Universal exhaust arm;
? Vacuum hose with high temperature resistant;
? Dust hood(with air flow control valve);
? Fire barrier;
? Flame retardant HEPA cartridge;
? Pulse blowback Device;
? Clean room;
? Ash drawer;
? Glass down;
? Castors with brake;
? Blower & Electronic Control Panel, etc.

3, Product Feature
Specialized Blower and Moto, take prevent overload circuit, which can prevent blower been burnout, high safety, stable work performance.Blower connected by high pressure hose,this canmake sure fume extractor always in good working condition. Filter cartridge use Americanimported material, long working life, it can filtrate dust particles less than 0.3μm, also have very good filtration effect to wet & sticky dust.
Remarks: Welding fume extraction test under standard environment, if air flow 3600m3/h means the achieved air flow at the air outlet of the equipment . Filtration area 30m2, means the area of consumable filter.
