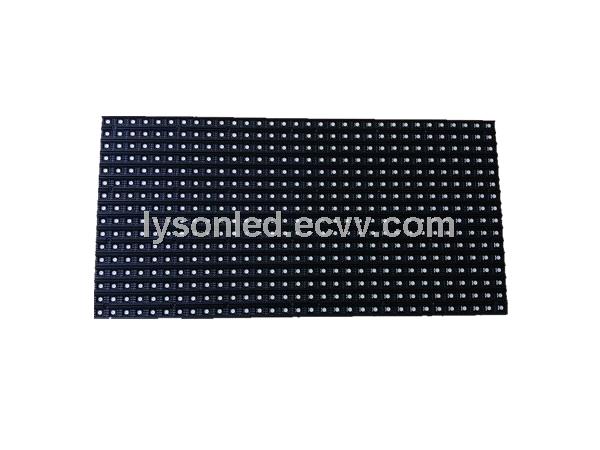

P7.62 SMD3528 Indoor Full Color LED Display Module,Video Screen
| FOB Price: | 20.00 - 24.00 USD/Piece |
|---|---|
| Supply Ability: | 100,000 Piece/Pieces per Month |
| Shipping: | seafreight / airfreight |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Carton/Plywood case/Flight case etc. |
Quick Details
- Screen Dimension: 244*122mm
- Model Number: LY-IRGB7.62
- Brand Name: lysonled
Specifications
P7.62 SMD3528 Indoor Full Color LED Display Module,Video Screen
Quick Detail:
1) Stable quality: Opto + Silan chipset;
2) High brightness: 1500 ~1800nits;
3) Scan driver: 1/8 current;
4) Module size(L*W): 244*244mm;
Description:
P7.62 Indoor Full Color LED Display Screen
7.62mm pixel pitch, 1R1G1B, 17222 dots/sqm, P7.62 Indoor Full Color LED Display Screen creates comfortable brightness and energy saving, display variable video resources, animations, messages to attract attention. We can see P7.62 Indoor Full Color LED Display Screen in many occasions, like Sports, advertising, traffic, entertainment, stage, events, stations, shopping center, airport, exhibitions, car shows, fashion shows, concerts, ceremonies, etc
Applications Occasions:
Sports, advertising, traffic, entertainment, stage, events, stadium, train station, bus station, shopping center, airport, exhibitions, car shows, fashion shows, concerts, ceremonies, etc
Specifications:
P7.62mm Indoor Full Color LED Display Screen:
|
Pixel configuration |
SMD3528 1R1G1B 3 in 1 |
||
|
LEDs configuration |
Red: wave length: 625~630nm; 300-400mcd |
||
|
Pixel pitch(mm) |
7.62 |
||
|
Pixel density(dots/sqm) |
17222 |
||
|
Calibrated brightness(cd/sqm, nit) |
1700 nits(adjustable) |
||
|
Calibrated brightness proportion ratio |
R: G: B = 3:6:1 |
||
|
Contrast ratio |
4,500:1 |
||
|
Brightness adjustment(dimming) |
100 grade auto/manual-adjustment |
||
|
View angle(degree)(50% brightness) |
V140/H140 |
||
|
Color capability |
4.4 trillion |
||
|
Refresh rate(Hz) |
> 1200 Hz |
||
|
Frame frequency(Hz) |
> 60 Hz |
||
|
Interface port |
DVI interface(DVI connector) |
||
|
Input signal |
VGA, Video, AVI, MOV, MPG, DAT, VOB etc. |
||
|
LED Drive |
Constant-current |
||
|
Lifetime(hours)(50% brightness) |
100,000 hours |
||
|
Signal transmission direction |
Horizontal |
||
|
Operating temperature(Celsius degree) |
-30 ~ 65 |
||
|
Storage temperature(Celsius degree) |
-35 ~ 70 |
||
|
Operation humidity(RH) |
0-95% |
||
|
Operation humidity(RH) |
0-99% |
||
|
Service |
Front and back service optional |
||
|
Control mode |
Synchronous & asynchronous available |
||
|
Communication options |
Wire Ethernet, Fiber Ethernet, RF wireless, GPRS |
||
|
Power |
120/240 VAC single phase(50-60Hz) |
||
|
Maximum power consumption(W/sqm) |
550 |
||
|
Average power consumption(W/sqm) |
220 |
||
|
Screen operation mode(scan/static) |
1/8 |
||
|
Module configuration(Pixels quantities of the module) |
Length |
32 |
|
|
Height |
32 |
||
|
Module dimensions(mm) |
Length |
244 |
|
|
Height |
244 |
||
|
Cabinet configuration |
Length |
128 |
|
|
Height |
96 |
||
|
Cabinet dimensions(mm) |
Length |
976 |
|
|
Height |
732 |
||
|
Width |
90(+module thickness) |
||
|
Aspect Ratio(L: H) |
4:3 or 16:9 |
||
|
Packaging configuration |
1~6 standard cabinets in a packing case |
||
|
Packing material |
Wooden case/carton/flight case(optional) |
||
|
Packing weight(KG) |
net |
40KG/m2 |
|
|
gross |
45KG/m2 (Iron) |
||
