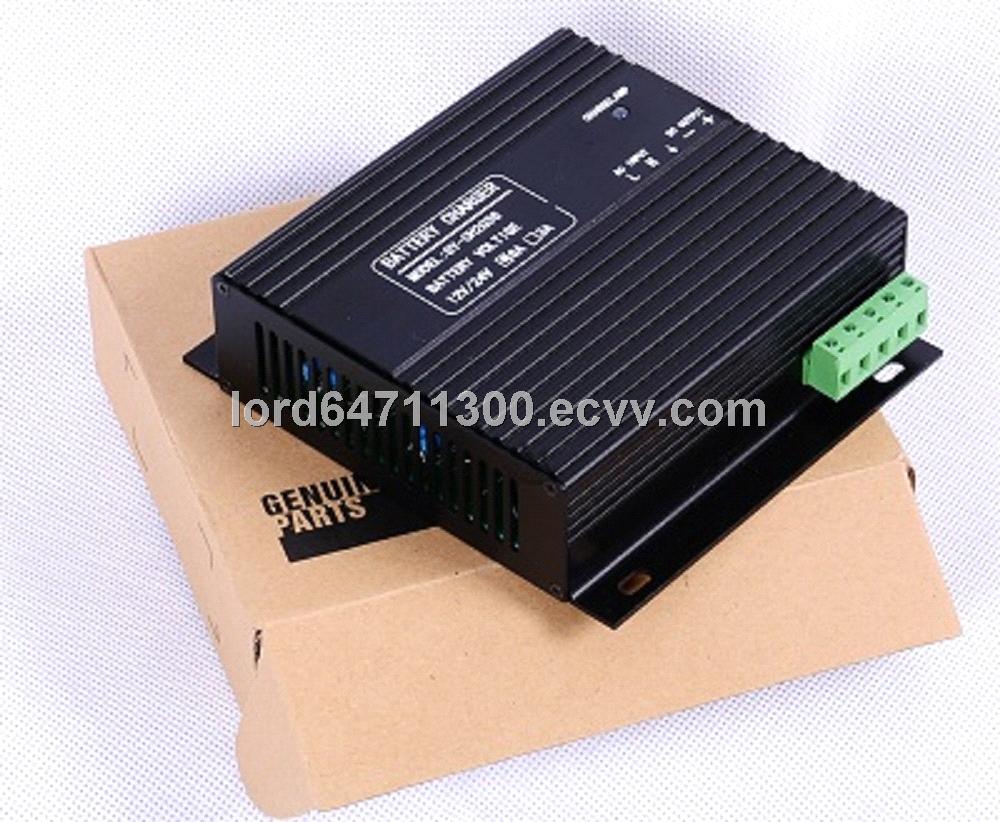

12V 24V Generator Set Battery Charger ZH-CH28 5A / 6A
| FOB Price: | 1.00 - 50.00 USD/Piece |
|---|---|
| Supply Ability: | 300 Piece/Pieces per Day |
| Shipping: | in stock. Within 2 work days after 100% payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia |
|---|---|
| Place of Origin: | Fujian in China |
| Packaging Details: | carton box.the size:180(L) x 160(W) x 60 (H) mm |
Quick Details
- Brand Name: Permanent
- Model Number: ZH-CH28 6A
- Warranty: one year
- other models: ZH-CH28 4A ZH-CH28 10A
- OEM service: yes
- net weight: 0.6kg per piece
- Dimensions: 180(L) x 160(W) x 60 (H) mm
- Usage: diesel genset
Specifications
Specifications
1.Automatis identify charging voltage
2.Supply from Stock
3.Compact Size & High Efficiency
12V 24V Generator Set Battery Charger ZH-CH28 6A:
1.Generator charger
introduction
Intelligent Charger is specially designed for starting or working of storage battery (especially suited for full-sealed solid wide-temperature storage battery) in diesel engine. It is a intelligent mode of switch structure. It features in constant pressure, constant current, tricking current, resistance of short circuit, and fully automated function.
2.Generator charger specification
|
Power Input |
Voltage 160~250 VAC |
|
DC Output |
Voltage 13.8 VDC, Current 5A--when battery group=12V |
|
Charge Mode |
Float charge |
|
DC Voltage Regulation |
< ±1% |
|
Efficiency |
> 80% @ Full load |
|
Contact Capacity |
0.5A @ 120 VAC |
|
Protection |
Reverse polarity, over-voltage, short circuit, current limiting |
|
Environment |
Operating Temperature : 0~40 °C |
|
Dimensions |
180(L) x 160(W) x 60 (H) mm |
|
Weight |
0.6 Kg ±2% |
3.Main advantages:
- Short Circuit & Reverse Polarity Protection
- Automatic Charging Under All Conditions
- Automatis identify charging voltage of battery group and putout 12V/24V.
- Compact Size & High Efficiency
- Low Battery Voltage Monitor With Dry Contacts Opening or Closing Under Fault
- Charging Current LED Indicators
- No Current Drain When Input Power Is Off
