Wanyan Electric Equipment Co., Ltd.
China Manufacturer with main products: Cartridge Heater, Band Heater, Ceramic Heater, Quartz Heater, Tubular Heater, Heating Element, Heat Emitter, Heating Tube |
Cartridge Heater for Heating Mold Machine
| FOB Price: | 2.00 - 5.00 USD/Piece |
|---|---|
| Supply Ability: | 50,000 Piece/Pieces per Week |
| Shipping: | 3-7 days |
| Payment Terms: | T/T, Western Union, Other, Paypal |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | carton and plywood box |
Quick Details
- Warranty: 1~3 years
- Certification: ISO, CE
- Power(W): customized
- Voltage: 12V- 250V
- Weight: customized
- Dimension(L*W*H): customized
- Model Number: WY-601
- Brand Name: WYHEATER
- Power Source: Electric
- Type: Air Heater
- Condition: New
- Conditions: new
- Working temperature: 950Deg.C max
- Sheath material: SS304, SS316, incoloy, stainless
- Resistance wire: Ni80Cr20, Kanthal FeCrAl
- Resistance tolerance: -5% +5%
- Standard leads length: 300mm
- Max temperature: 750 Deg.C
- Power source: electric
- Voltage: 12-250V
- Warranty: 1-3 years
Specifications

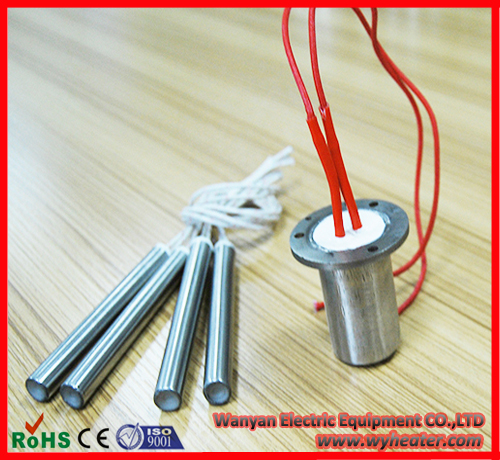

Cartridge Heater for Heating Mold Machine
High density cartridge heaters can withstand ever demanding requirements. These are top performing heaters that achieve working temperatures of 700°C--800°C and specific surface loads of 5 ~35W/CM2 with different lengths. Further options are available according to client requirements, e-mail us: Diameter, Length, Wattage, Voltage, Termination type (include length if leads), Integrated Thermocouple required, Application of heater, Qty of heaters required.
Technology data:
|
Heat intensity |
Not exceeding 30Wcm2 (advisable) |
|
Power |
Depends on the dimension |
|
Escape of current (when cold) |
<=0.1mA a 242 v. |
|
Insulation (when cold) |
5 Min Ohmios 500 Watts minimum |
|
Dielectric strength |
1500v. 1/seg |
|
Working temperature |
750oG max. |
|
Cold areas |
Depends on length and diameter 5-25mm |
Descriptions:
1. There is no the exposed wire connection determines this heater is the internal cartridge heater, we have to say it that this cartridge heater working life is longer than the external cartridge heater and the manufacturing process is very complex
2. Different connection sleeves such as flexible metal sleeve, braided metal sleeve, stainless steel sleeve, protective spring (only welded).
3. Cartridge heaters are reasonable priced, easy to install
4. As a rule they consist of a cylindrical stainless steel tube and thus provide a high corrosion prevention.
5. There is a heating wire inside which is wound into a ceramic core. The number of coils varies depending on the power
6. The cartridge heater is filled with magnesium oxide and compressed to avoid a short-circuit.
7. Good heat emission and the excellent control response.
Classifies:
According to whether have the exposed wire connection or not.
External cartridge heater: hard stainless steel wire elicit from the interior heater, meet the high temperature wire outside. This technology is standard.
Internal cartridge heater: high temperature wire elicit from the interior heater directly, this technology is high in the cost, but hard to broken line.
Soft lead wire cartridge heater: stainless steel soft wire elicit from the interior heater, latch the glass fiber sleeve outside .this technology is low in cost ,hard to broken line. the type is: HSM3-3
Applications:
In the plastics industry cartridge heaters are used in hot runner system, small mould heating, plastic package, Medical equipment plastic, plastic injection molding machine nozzle heating, Package and cartridge is also used in the cigarette industry, footwear industry, thermoforming machinery.
