Harbin Measuring & Cutting Tool Group Co., Ltd.
China Manufacturer with main products: Gauge Block, Dial Indicator, Vernier Caliper, Micrometer, Solid Carbide End Mill, Gear Tester, Plug and Ring Gauge, Microcator |
Related products from verified members
Quick Details
- Brand Name: Links
- color: grey white
- Theory: used for checking Fi'',fi'',Fr''
- Resolution: 0.0005mm
- Size: 600*200*350mm
Specifications
the tester is designed to inspect the total radial composite deviation Fi'', tooth-to-tooth radial composite deviation fi'',runout Fr'' and tooth span M over pins on cylindrical gear. the cutting burr and scratch can automatically be identified and picked out.

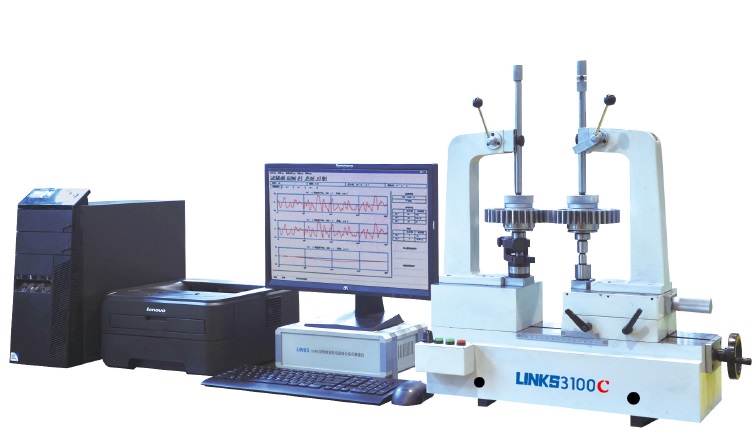

Rolling gear tester model 3100C
Distance between centers 40-175mm
Max outer diameter of gear shaft: 150mm
Length of gear shaft: 50-170mm
Measured value resolution: 0.0005mm
Max indication error: 0.005mm
Application range: cylindrical gears with hole or with extended shaft
