Aegis industry (Shanghai) Co., Ltd.
China Manufacturer with main products: Air Compressor, Filter, Turbocharges, Dryers, Marine Equipments, Marine Parts |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
Quick Details
- Type: air compressor
- Material: Steel
- Size: 1050*740*750MM
- Brand Name: TANABE
- Model Number: VLH43
Specifications

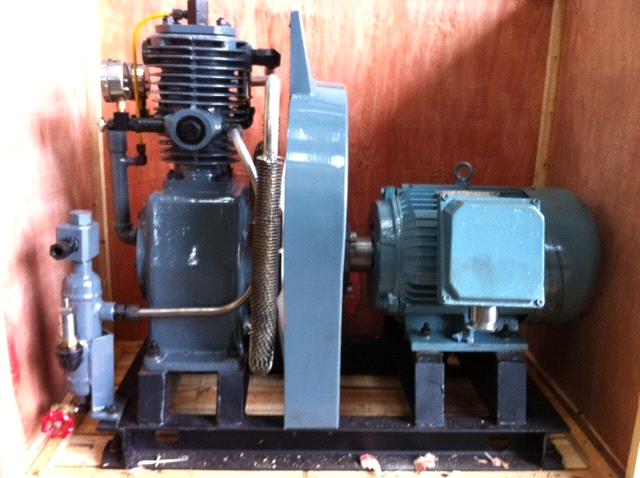

VLH43 AIR COMPRESSOR
Air compressor,Model VLH43 is a air-cooled 2-class compressor which is mainly used to start both the marine and land diesel engines and also the general compressed air source,i.e.air sources for pressure test and other high pressure applications,such as industry,port,airport,exploration,medical treatment and so on.
The compressor is designed for compact and lightweight construction with less installation space.Moreover,special consideration is taken in the design so that they can achieve their specific performance and durability in the specified service conditions.Furthermore due to air-cooled type the pressure balance in each stage and entire cooling throughout the whole compressor are fully taken into account so as to assure stable running and minimal maintenance cost.
V belt driving,direct coupling,diesel engines V belt driving and automatic control all can be applied according to the customer's requirements.
|
VLH-43 air compressor main specifications |
||||||
|
Compressor model |
VLH-43 |
|||||
|
Type |
air-cooled, 2 stage compression |
|||||
|
Number of cylinder |
2 |
|||||
|
Pressure rating(Mpa) |
3 |
|||||
|
Rotation rating(r/min) |
900 |
1000 |
1200 |
1500 |
||
|
Quantity of air supply(m3/h) |
23 |
26 |
32 |
40 |
||
|
Suction filtration method |
Dry filter |
|||||
|
Lubricating system |
Splash lubrication |
|||||
|
Oil volume(L) |
3.8 |
|||||
|
Method of driving |
Direct coupling or V belt |
|||||
|
Type of unloader |
Manual,total closure suction type or magnetic unloader valve |
|||||
|
motor |
type |
Direct coupling |
Y160L-8-H |
Y160M-6-H |
Y160M-6-H |
Y160M-4-H |
|
voltage/frequency(V/Hz) |
440/60 |
380/50 |
440/60 |
380/50 |
||
|
V belt |
Y132M-4-H |
Y132M-4-H |
Y132M-4-H |
Y160M-4-H |
||
|
voltage/frequency(V/Hz) |
440/60 or 380/50 |
|||||
|
Rotation rating(r/min) |
Direct coupling |
870 |
970 |
1170 |
1460 |
|
|
V belt |
1440 |
1440 |
1440 |
1460 |
||
|
power(kw) |
7.5 |
7.5 |
7.5 |
11 |
||
|
Shape size(mm) |
1050×740×750(direct coupling) |
|||||
|
1350×660×850(v belt) |
||||||
|
Weight (kg) |
～330 |
|||||
