Zhejiang Clion Relay Co., Ltd.
China Manufacturer with main products: Relay, Solid State Relay, Relay Socket, Power Semiconductor Module |

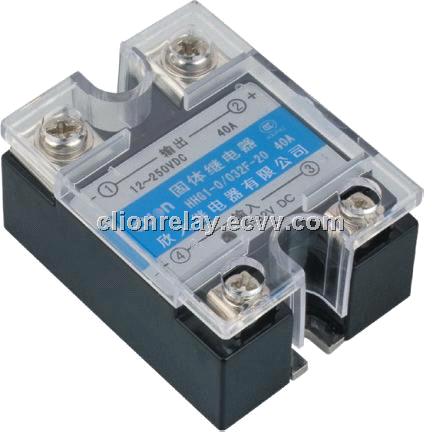

HHG1 Single-phase SSR DC
| Shipping: | FOB SHANGHAI/NINGBO |
|---|---|
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | Export packaging |
Quick Details
- Brand Name: Clion
- Model Number: HHG1 -1
Specifications
HHG1-0/032F-20 10-40A
DC---DC
Description
Single-phase SSR
Control Voltage
032:5-32VDC
Control Current
6-25mA
Turn-on Voltage
5VDC
Turn-off Voltage
1VDC
Reverse Voltage
32VDC
Load Voltage
20:12-250VDC
Load Current
10A,15A,20A,25A,30A,40A
Transient Voltage
20:400VDC
On-state Voltage Drop
＜1.2VDC
ON-OFF Time
≤5mS
Off-state Leakage Current
≤5mA
Dielectrics Voltage-resistance
≥2500VAC
Insulation Resistance
500MΩ 500VDC testing
Ambient temperature
-30～80℃
Dimensions
57.2L*43.5W*29H
Indicated Methods
LED
Installation
Screw fixing
Packing
Inner Box (PCS)
1PCS/small box,10pcs/1 inner box
Outer CTN (PCS)
100
CTN Size
380*215*175mm
Weight
10A≤110g/PCS G.W:12kg N.W:11kg
20A≤140g/PCS G.W:15kg N.W:14kg
40A≤145g/PCS G.W:15.5kg N.W:14.5kg
Radiator
HH060,HH061
Remarks
1.Load current＞10A ,a radiator is necessary,Load current＞80A, fan is necessary.
2.When controlling inductive load, a varistor is necessary and its voltage could be 1.6-1.9 times of load voltage
Part NO. | HHG1-0/032F-20 10-40A | |
DC---DC | ||
Description | Single-phase SSR | |
Control Voltage | 032:5-32VDC | |
Control Current | 6-25mA | |
Turn-on Voltage | 5VDC | |
Turn-off Voltage | 1VDC | |
Reverse Voltage | 32VDC | |
Load Voltage | 20:12-250VDC | |
Load Current | 10A,15A,20A,25A,30A,40A | |
Transient Voltage | 20:400VDC | |
On-state Voltage Drop | ＜1.2VDC | |
ON-OFF Time | ≤5mS | |
Off-state Leakage Current | ≤5mA | |
Dielectrics Voltage-resistance | ≥2500VAC | |
Insulation Resistance | 500MΩ 500VDC testing | |
Ambient temperature | -30～80℃ | |
Dimensions | 57.2L*43.5W*29H | |
Indicated Methods | LED | |
Installation | Screw fixing | |
Packing | Inner Box (PCS) | 1PCS/small box,10pcs/1 inner box |
Outer CTN (PCS) | 100 | |
CTN Size | 380*215*175mm | |
Weight | 10A≤110g/PCS G.W:12kg N.W:11kg 20A≤140g/PCS G.W:15kg N.W:14kg 40A≤145g/PCS G.W:15.5kg N.W:14.5kg | |
Radiator | HH060,HH061 | |
Remarks | 1.Load current＞10A ,a radiator is necessary,Load current＞80A, fan is necessary. | |
2.When controlling inductive load, a varistor is necessary and its voltage could be 1.6-1.9 times of load voltage | ||
