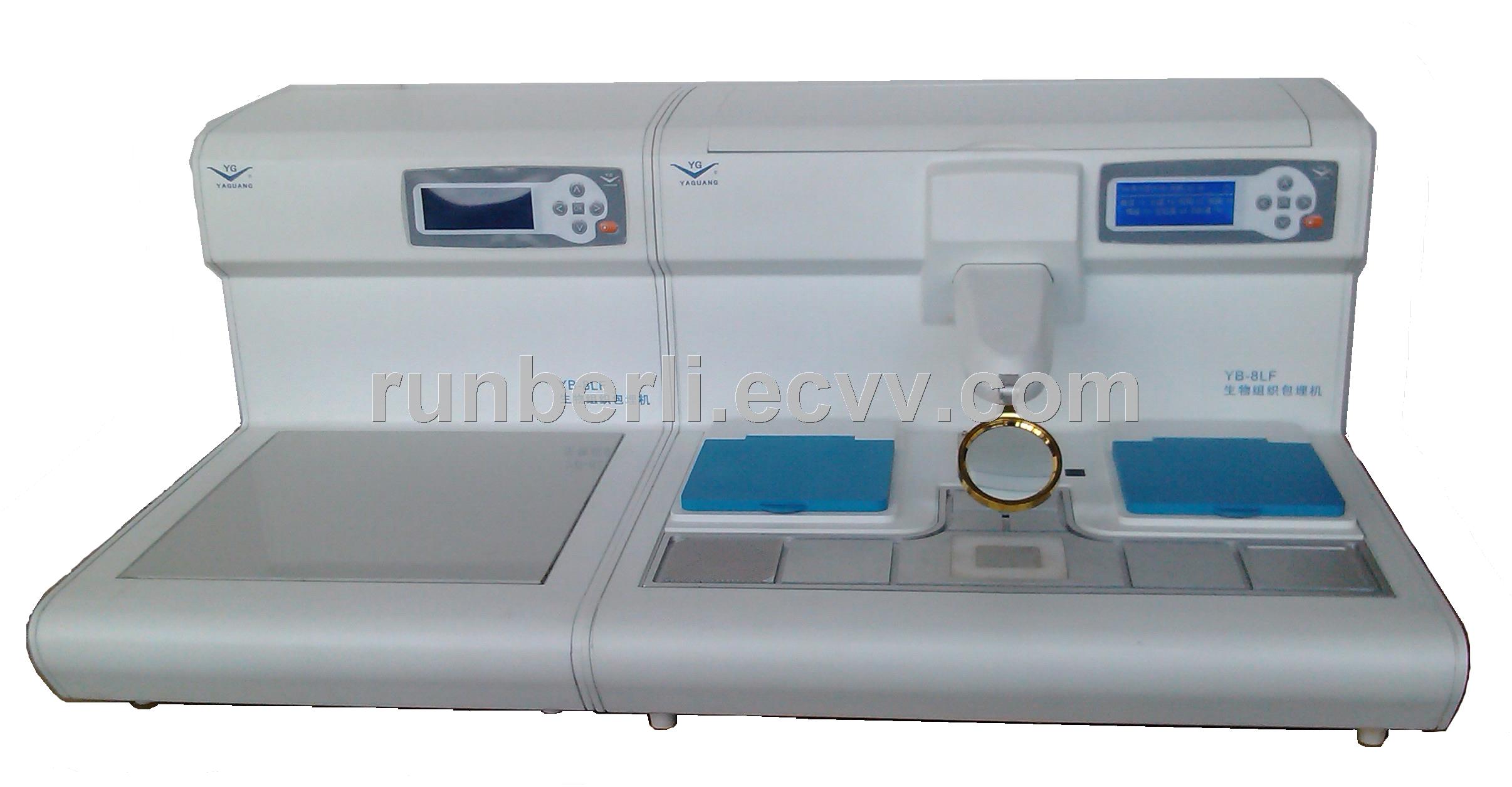

YB-9LF luxury Paraffin dispenser(tissue tek) Embedding Center

Specifications

1. Wax Bath Capacity: 5L(can meet more than 500 tissues embedding ) 2. Cryo console size: Big cryo console( more tissues): 365 mm x 310 mm Small cryo console( single tissues): 65 mm x 55 mm 3. Embedding table: 160 mm x 100 mm 4. With 24 hours every day timing open or shutdown can be set and one week in any day open or shutdown function 5. Two insulation cylinder, volume: 240 mm x 160 mm x 50 mm 6. Wax valve and wax tube temperature range: 65 ℃-67 ℃; 7. Wax cylinders, working table, forceps, double insulation cylinder temperature range: room temperature to 80 ℃ set arbitrary 8. Fast cooling console temperature range: room temperature to 30 ℃ 9. Wax control way: Hand-operated and Foot-operated 10. Power Source: AC220V±10%, 50HZ±1HZ ≤750AV 11. Dimension: 600mm x 620 mm x 365 mm 12. Weight: about 35KG Features 1. Aluminium alloy design, large size working table, elegant appearance. 2. With LCD display, easy to operate. 3. With a small cooling table in embedding part, fast refrigerate the embedded tissues. 4. Double large capacity insulation cylinder, store more tissues. 5. No shadow lighting, energy saving, protect vision. 6. Forceps hole heating, convenient to take out tissues and easy to removal residual wax . 7. The wax cylinder, worktable, insulation cylinders are made of the double overheating protection, safe and reliable. 8. The wax flowing way adopts secondary filter design, ensuring the purity of paraffin. 9. With memory and automatic restore function, automatically keep preset temperature after the operation. 10. With eight independent temperature control system. Key words : Embedding Center,Paraffin dispenser,tissue tek)
