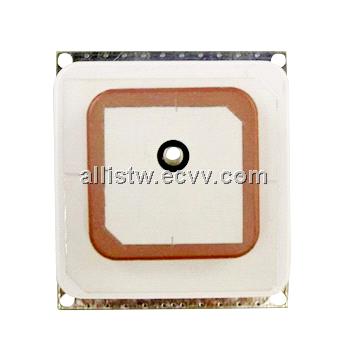

GPS(L1/L2)/GLONASS(L1)/Compass(B1)/ Galileo(E1) Active Antenna Module
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Model Number: J830B
Specifications
Active Antenna is one of our main products, featuring its durable quality and long-lasting performance. Besides that, we provide several kinds of Passive Antenna, such as GPS Patch, GLONASS Antenna, GLONASS Outdoor Antenna and GPS External Antenna with competitive price.
Our company also offers small L1/L2 Antenna and GPS External Antenna with superior quality. The antenna has been rated and benchmarked by the leading L1/L2 receiver module and chipset companies as best in industry.
Feature :
GPS + GLONASS+BDS+ Galileo
For L1, L2 Frequency
Low Profile
Concealable
High Performance
1-1. Patch Antenna
| Frequency | GPS (L1:1575.42MHz/L2:1227.6MHz) | GLONASS (L1:1602~1615MHz) | BDS (Compass) (B1:1575.42MHz) | Galileo (E1:1575.42MHz) |
| VSWR | 2.0 max. | |||
| Impedance | 50Ω | |||
| Peak Gain | 0dBic at 0° (4.2cm x 3.75cm ground plane) | |||
| Polarization | RHCP | |||
1-2. Amplifier Module
| Model No | Amplifier Gain without cable | Noise Figure | Output VSWR | DC Voltage | DC Current | |
| J830B | GPS | L1: 30dB Typ. | 2.1dB Typ. | 3.0 Max. | DC 2.5 to 6V | 9mA Max. |
| L2: 36dB Typ. | 3.2dB Typ. | 2.0 Max. | ||||
| GLONASS L1: 30dB Typ. | 2.1dB Typ. | 3.0 Max. | ||||
| BDS B1: 30dB Typ. | 2.1dB Typ. | 3.0 Max. | ||||
| Galileo E1: 30dB Typ. | 2.1dB Typ. | 3.0 Max. | ||||
2. Dimension
| Item | Specification |
| Weight (Without Cable) | 50 grams Max. |
| Size | 55 x 46.5 x 19mm |
| Cable | RG174 |
| Connector | SMA Plug(option) |
