Quick Details

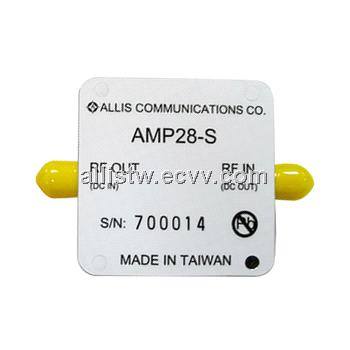

- Model Number: AMP28
Specifications
In addition to GPS Amplifier, we also provide high quality Switching Mode Rectifier, Off-line UPS, GPS Marine Antenna, ODM GPS and GPS System.
Low Noise Amplifier. GPS signals received by the antenna can be amplified to make up signal attenuation due to the cable transmission line. Each amplifier is approximately 28dB.
Feature :
Low lose
Metal Structures
High Isolation
Low Profile
Benefit :
High Performance
Concealable
Resistance Interference
| Electrical | |
| Frequency | 1525~1625MHz |
| Impedance | 50Ω |
| Gain | 25 dB Min. 28dB Typical |
| Noise Figure | 1.2dB Typical |
| DC Voltage | 5V to 12V |
| Out P1dB compression | 1dBm Typical |
| Input Power | 17dBm |
| DC Current | 30mA Max. |
| Power Consumption | 360 mW |
| Fuse | Maxnum:1.1(A) |
| ESD DC Spark-Over voltage | 140V(98~182) |
| Mechanical | |
| Weight | 39.4 grams Max. |
| Size | 41.60X41.3X10.1mm |
| Connector type | SMA x 2(Jack) |
| Housing material | Aluminum |
| Environmental | |
| Working Temperature | -30°C < T < +80°C |
| Storage Temperature | -40°C < T < +85°C |
