47''-84'' Riotouch LED multi touch all in one screen monitor integrated with OPS PC
| FOB Price: | 1,500.00 - 7,000.00 USD/Set |
|---|---|
| Supply Ability: | 500 Set/Sets per Month |
| Shipping: | 10 -15 working days after the payment is checked |
| Payment Terms: | T/T, Western Union, MoneyGram |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 1 set/ package + wooden box outside |
Quick Details
- Brand Name: riotouch
- Model Number: HV series
- Usage: Indoor
- Tube Chip Color: Red
- Display Function: Video
- Pixels: 1920*1080
- Screen Dimension: According the size
- LED brand: 42'' ,47'',55'',84''(LG) , 65'' -Auo , 70''-Sharp
- size: 42'' ,47'' ,55'',65'',70'',84''
- OEM & ODM: Accept
- Resolution: 1920*1080 or 3840*2160
Specifications

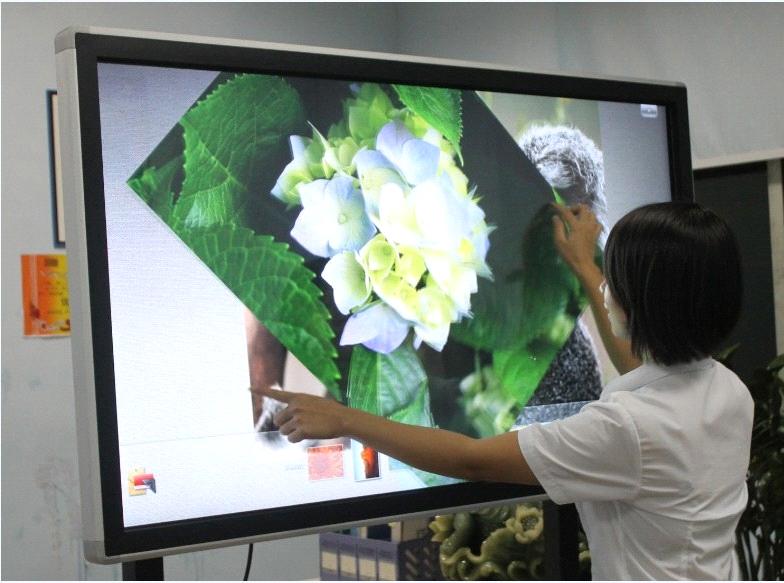

Riotouch FHD LED all in one touch monitor is an interactive TV, it built-in with LED and touch screen (and PC for optional). We use the most popular technology infrared touch and the most popular PC -OPS
to meet different demands , make the goods more convient . We also use the front touch screen frame ,easy for maintain and after-sales .
Application :
1. Business Institutions: Department Store, Super Market, Exclusive Store, Hotel, Restaurant, Medicine Store, etc.
2. Financial Institutions: Bank, Stock Market, Insurance Company, etc.
3. Public Services: Hospital, School, Telecom Hall, Post Office, etc.
4. Public Places: Subway, Airport, Bookstore, Park, Exhibition Center, Stadium, Museum, Ticket Agency, HR Market, Lottery Center, etc.
5. Real Eatates: Apartment, Villa, Business Building, etc.
6. Entertainment Places: Cinema, Gym, Holiday Inn, Nightclub, Massage Parlor, Internet Cafe, Golf, etc.
|
LCD Parameters |
Size | 47"-LG, 55"-LG, 65"-AUO, 70"-SHARP, 84"-LG | ||||
| LCD Brand | ||||||
| Display Parameters | Active Display Area | 1022(h)x576(v)mm | ||||
| Pixel Pitch | 0.4845(h)x0.4845(v)mm | |||||
| Display Colors | 16.7M/1.06B (8-bit/8-bit +FRC) | |||||
| Number of Pixels | 1920x1080 pixels | |||||
| Brightness | 350cd/m2 | |||||
| Viewing Angle | 178 Degree | |||||
| TV Parameters | TV Standard | NTSC M/N,PAL BG/DK/I/H,SECAM L/L | ||||
| Multimedia Formats | MPEG1,MPEG2,MPEG4,H264,RM,RMVB,MOV,MJPEG | |||||
| USB2.0 Multimedia Playback | Vido/Audio/Picture | |||||
| USB System Upgrading Online | Support USB online upgrading function | |||||
| Resolution | Max. 1080P format | |||||
| HDMI | V1.3, 720P/1080P | |||||
| HDCP | V1.1 | |||||
| 3D DNR | Support 3D video DNR | |||||
| Scanning Format | Support 1080i 3D Video crisscross DAS (Dynamic Adaptive Scan ) | |||||
| Sound Control | Automatic sound standard detection, support for balance adjustment and surround Sound | |||||
| Sound Output | 2X10W | |||||
| Input and output ports | USB Multimedia Input ports | 4-line | ||||
| Touchscreen port | 1-line USB2.0 | |||||
| HDMI Input port | 3-line | |||||
| VGA Input port | 1-line | |||||
| PC Audio port | 1-line | |||||
| UPBRP audio and video input port | 2-line | |||||
| AV Input port | 2-line | |||||
| S-VIDEO port | 1-line | |||||
| SPDIF port | 1-line | |||||
| Touch parameters | Touch Technology | Infrared touch technology | ||||
| Touch mode | Single, multipoint,Mouse click | |||||
| Inductive objects | Finger,pen or any other opaque objects | |||||
| Inductive size | Diameter≥5mm | |||||
| Resolution | 4096*4096 | |||||
| Response time | 1) First dot(click):8ms, continuously(writing):3ms 2) multipoint click:first dot(click):8ms,continuously(writing):8ms 3) Mouse click:first dot(click):8ms,continuously(writing):8ms | |||||
| Cursor speed | UP to 300 dots/s Multipoint,mouse click:125 dot/s | |||||
| Operating life | ≥60,000,000 times to click | |||||
| Power | USB power supply (4.6-5V, DC) | |||||
| Power consumption | ≤1w | |||||
| Operation Systerm | Windows 8, windows 7, XP, Mac, Linux | |||||
| Calibration | HID devices standard, accord with Win7 multi-touch protocol, no need special software to calibrate, just use Table PC setting to finish the calibration. | |||||
| Anti-light decay function | Anti-light decay circuits to prevent the performance degradation caused by long working hours | |||||
| LED Test Software | Supply touch screen LED test software to test the function of each couple of the LED lights and the drawing functions | |||||
| Antilight interference function | can work properly in direct sunlight condition | |||||
| Standard configuration | Interactive all-in-one touch monitor | 1set | ||||
| Remote Control | TV Remote control | |||||
| USB cable | 1.5m USB cable for touch monitor, USB2.0 | |||||
| VGA cable | 1.5m VGA cable | |||||
| Audio cable | 1.5m audio cable | |||||
| CD | 1 pcs | |||||
| Pens without ink | 2 pcs | |||||
| User manul | 1 pcs | |||||
