Similar to Raspberry PI 10/100/1000m Ethernet optional wifi banana PI M1

FOB Price:	46.00 - 50.00 USD/Piece
Supply Ability:	100,000 Piece/Pieces per Month
Shipping:	within 3 days after payment
Payment Terms:	T/T, Western Union, Other, paypal

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Insulation Skirt

Price:

Min. Order:
80mm Thermal Receipt (HCC-POS88IV)

Price:1.00-1,000.00 USD/Piece

Min. Order:1 Piece
Flatbed Tarping systems

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	standard packing

Quick Details

Brand Name: SinoVoip or OEM
Model Number: SinoV-BANANA PI M1
developement board: A20
system: linux/android

Specifications

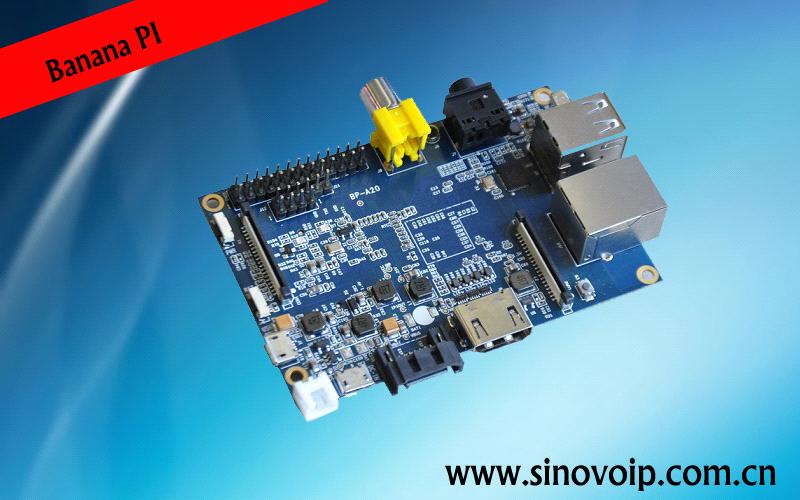

Electronic component similar to Raspberry PI 10/100/1000m Ethernet optional wifi banana PI M1

Banana PI M1 is the open source hardware platform which published to assistant the Elastos.org open source OS, Banana PI M1 is the dua0core Android 4.2 product which more better than the Raspberry Pi. M series run Android, mean Mother-Board, D series run Linux, mean Daughter-board. Elastos coordinate multi CUP to from the family cloud entirnment which based on the " software/hardware service" Banana PI hardware: 1Ghz ARM7 dual-core processor, 1GB DDR3 SDRAM,

The process of making the card

Make start the SD card according the downed image file. The android image file use the PhoenixCard (Android Image) tools, Linux use the dd-like tools (Debian or Ubuntu image) We provide the card which compatible with the Rasberry PI to use on Banana PI, no matter the image or the 8GB card, please use the root competence under the linux or Ubuntu. And Mount to check the device name/dev/sdx of the SD card. If have the card was mounted, then first need to umount/ dex/sdxxx

1, Use the card to make image dd if=/dev/sdX of=pi.8GB bs=10M

The sdx here have to see the which SD card your system correspondence , Sda or SDB or SDC. It will have the PI.8GB image file which almost 8GB, it is the mother-board.

" If" means input file, " of" mean the output file, " bs" means buffer size The details you can check mad dd If for convenient transfer, need to compression file: tar czvf pi.8GB.tgz pi.8GB Then can compress to 2.4GB, because the raspberry PI have 1.4GB, and Debin is about 2GB, so after compression, it is about 2.4GB

If need to restore to pi.8GBv: tar xvf pi.8GB.tgz

2, Use the image file to make the SD card dd if=pi.8GB of=/dev/sdX bs=10M

The sdx here have to see which SD card your system correspondence , Sda or SDB or SDC.

3, Insert the made SD start card

4, connect with the display screen

5, connect with the USB charger wire 6, Open the system

Hardware specification
CPU	A20 ARM Cortex?-A7 Dual-Core
GPU	ARM Mali400MP2Complies with OpenGL ES 2.0/1.1
Memory (SDRAM)	1GB DDR3 (shared with GPU)
Onboard Storage	SD (Max. 64GB) / MMC card slot UP to 2T on 2.5 SATA disk
Onboard Network	10/100/1000 Ethernet RJ45,optional WIFI
Video Input	A CSI input connector allows for the connection of a designed camera module
Video Outputs	HDMI, CVBS , LVDS/RGB
Audio Output	3.5 mm Jack and HDMI
Power Source	5 volt via MicroUSB(DC In Only) and/or MicroUSB (OTG)
USB 2.0 Ports	2 (direct from Allwinner A20 chip)
Buttons	Reset button: Next to MicroUSB connector Power button: Next to Reset button Boot button (Optional): Behind HDMI connector
GPIO(2X13) pin	GPIO,UART,I2C bus,SPI bus with two chip selects, CAN bus,ADC,PWM,+3.3v,+5v,ground.
LED	Power Key & RJ45
Remote	IR (Optional)
OS	Android 4.2,Firefox OS and Linux etc. OS
Interface definition
Product size		92 mm × 60mm
Weight		48g
