Outdoor EOC master EOC Slave with two EOC Module

Supply Ability:	100,000 Piece/Pieces per Month
Shipping:	7days
Payment Terms:	T/T, Western Union, MoneyGram

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

SuperSpeed USB 3.0 PCI Express (x1)(3x ext)+ SA...

Price:13.00-15.00 USD/Piece

Min. Order:60 Pieces
OMRON PLC- C200H-OC221 Module

Price:10.00-1000.00 USD/Set

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	gift box

Quick Details

Model Number: CD7112
Brand Name: C-DATA

Specifications

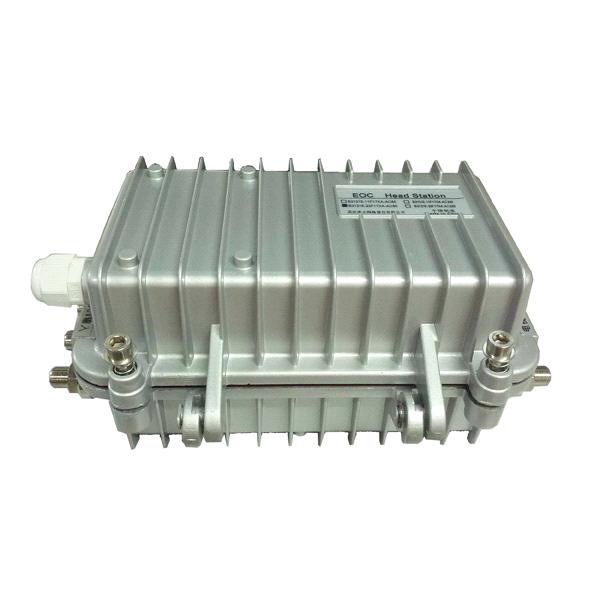

CD7112 is the outdoor EOC Master of the EOC (Ethernet Over Coxial) solution. It is in compliant with HomePlug AV standard.
The CD7112 have two EOC module. It provide two TV input, two com output and two 10/100/1000M auto-negotiation
uplink ports. It offers the high-speed data service to the customer based on the coaxial cable network.

The EOC module in the CD7112 is based the Qualcomm INT7410 chipset solution , with high anti jamming
capability OFDM technology. The 7.5-65Mhz low frequency band is used for EOC signals. Built in high isolation filter
as CATV RF and EOC signal mixer, the EOC signal and CATV signal in 87~862Mhz can running on one cable without
interference. The EOC Master can provide high speed data service. The PHY Layer speed is 600Mbps, the MAC Layer
throughput is up to 320Mpbs. Each EOC Master module can support up to 253 EOC slavers.

Function Features

HomePlug AV solution, based the Qualcomm INT7410 chipset
Modularized design, easy for maitain
Aluminum alloy die casting shaping, good heat dissipation
Outdoor waterproof designed, 60V/220V power supply optional
7.5-65Mhz frequency for EOC signals., no influence on CATV Service
PHY Layer speed 600Mbps, MAC Layer throughput up to 320Mpbs
Support bi-direction data encryption
Support broadcast storm limitation
Support data packet statistics
Support auto-update and auto-configuration
Support WEB , CLI , SNMP based network management
Support On-line upgrading
