Zhengzhou Pulisen Machinery Co., Limited
China Manufacturer with main products: Food Machine, Wood Working Machine, Agricultural Machine, Package Machine, Pellet Press Machine, Potato Cutting Machine, Tea Packing Machine,... |

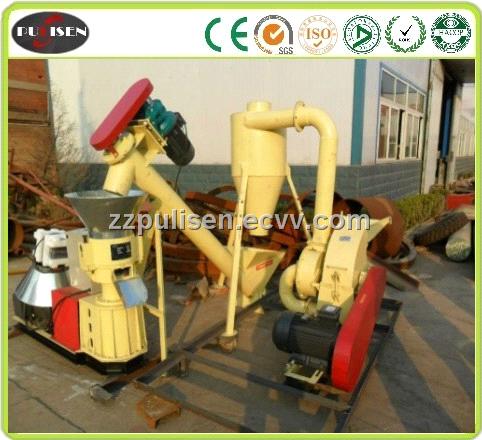

Feed Pellet machine
| FOB Price: | 2,000.00 - 10,000.00 USD/Set |
|---|---|
| Supply Ability: | 500 Set/Sets per Month |
| Shipping: | within 7 days |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | in wooden box |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 year
- Certification: CE, SGS, BV, TUV, GMP, RoHS, ISO, GOST
- Weight: 230kg
- Dimension(L*W*H): 1000x430x950
- Power(W): 7.5kw
- Voltage: 380v
- Type: Feed Pellet Machine
- Model Number: PLS-200
- Brand Name: PLS
- Condition: New
- H.S Code: 8479300000
Specifications
Feed pellet machine, Feed pelletizer, Feed granulator, feed pellet mill
With the fast development of feeding animals industry and biomass energy saving project, this kind of Flat Die Pellet Press machine become very popular. Since it not only can process the feedstuff for animals, such as feed for fish, chicken, pig etc, but also can process the waste biomass material to wood pellet.
Classification of Small Pellet Mill
Small pellet mill offered by Kingman can be devided into motor-driven pellet mill, diesel engine-driven pellet machine, gasoline-driven pellet press and PTO pellet mill. Hereunder are mianly motor-driven pellet mill and diesel engine-driven pellet machine.For gasoline-energized pellet press and PTO pellet mill, please contact us for details.
Technical Parameters:
For using this flat die pellet press, we got some feedback from our customers. They obtained some
experience when they were using this machine to produce wood pellet. Hope it is helpful for you:
1) Best moisture is 15% for all materials
2) The temperature is constant about 90-95'C, you have to take over the pellet just coming out from this pellet press and cooling it before touching it by hand.
Furthermore, we improved our machine more suitable to produce wood pellet after absorbing
& digesting the feedback from our customers. In general, they're:
1) Special raw material on the main parts such as roller, template, matrix
Prolonging the life than other similar products in China when process wood pellet after this modification.
2) Modify the whole in the matrix to improve performance of the machines. It's more easy to making pellet.
3) We got the CE Certificate to meet EU client's requirement.
Technical data sheet:
Model
Power
Capacity(kg/h)
Dimension(mm)
G.W (kg)
PLS-200
3-phases
7.5kw
200-300
1000x430x950
230
PLS-230
3-phases
11kw
300-400
1140x470x970
320
PLS-260
3-phases
15kw
400-600
1200x500x1070
360
PLS-300
3-phases
22kw
700-800
1270x520x1070
450
PLS-360
3-phases
22kw
900-1000
1270x520x1070
500
PLS-400
3-phases
30kw
1200-1500
1470x600x1150
585
