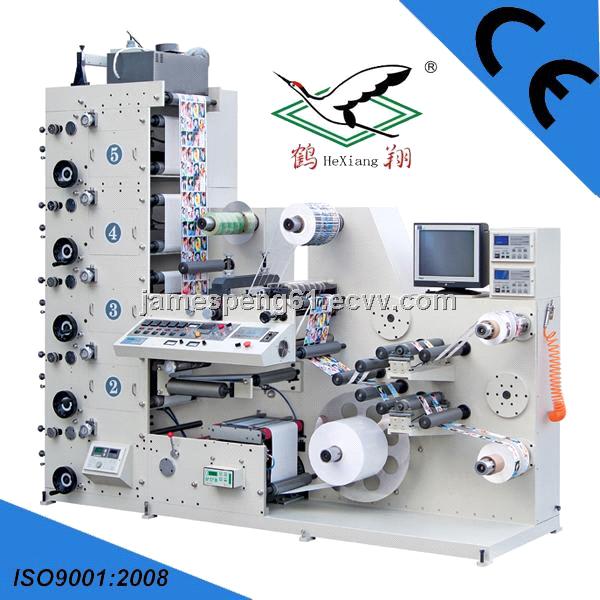

>Products Catalog > Flexographic printing machine > RY320-5C Flexo printing machine with slitting
Related products from verified members
Quick Details
- Condition: New
- Plate Type: Letterpress
- Brand Name: Hexiang
- Model Number: RY320-5C
- Usage: Paper Printer,Label Printer,Bill Printer
- Automatic Grade: Automatic
- Color & Page: Multicolor
- Voltage: 380V 3phase
- Certification: CE, ISO
- After-sales Service Provided: Engineers available to service machinery overseas
Specifications
Specifications
This printing machine can finish printing, die cutting and slitting functions in a lump.
Detailed Product Description
Standard configurations:
1.One Paste plate machine
2.One anilox roller for each group (writing resolution is option, made in shanghai)
3.Three sets printing rollers
4.Printing both sides at the same time (with Turn Bar)
5.With the lamination station
6.One unwinding tension controller (Mitsubishi Japan)
7.One rewinding tension controller
8.With die cutting station
Main technical parameter of printing system:
Printing speed | 60m/min |
Printing color | 5colors |
Max. Web width | 320mm |
Max. Printing width | 310mm |
Max. Putting diameter | 600mm |
Max. Winding diameter | 550mm |
Printing girth | 175-320mm |
Precision of chromatography | +/-0.10mm |
Dimensions | 3100*1100*2600(mm) |
Machine weight | About 2200kg |
Main technical parameter of slitting system:
Slitting speed | 100m/min |
Max. Web width | 550mm |
Max. Putting diameter | 700mm |
Max. Winding diameter | 600mm |
Precision of slitting | ±0.10mm |
Power of the host machine | 1.5KW |
Dimensions | 1367×953×1490 |
Machine weight | About 700kg |
anilox rollers :
rotary die cutting station :
