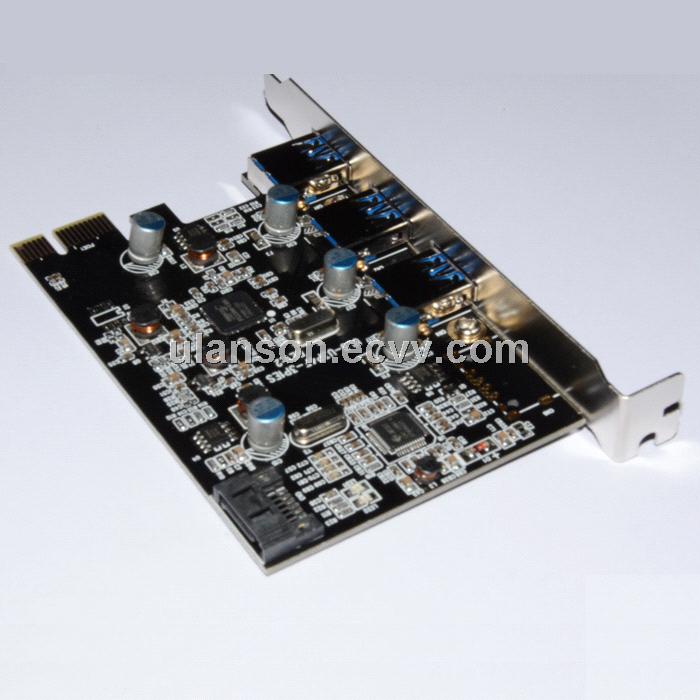

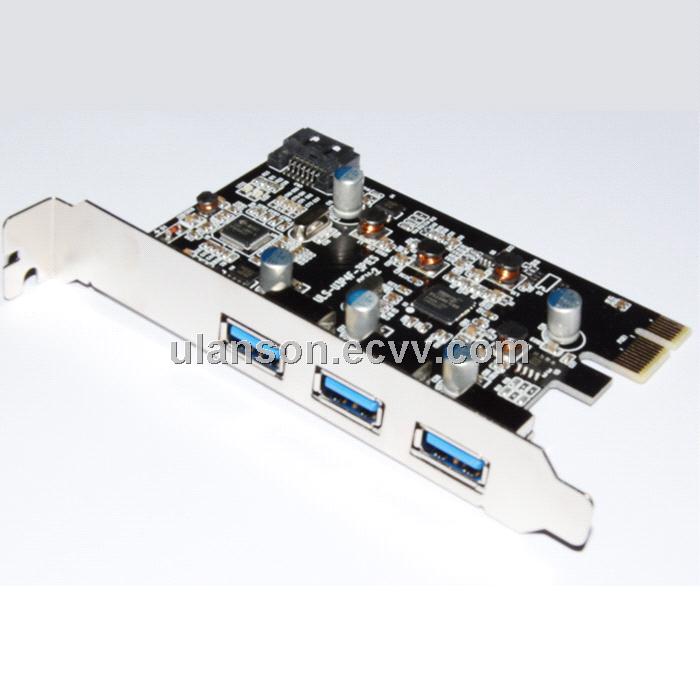

SuperSpeed USB 3.0 PCI Express (x1)(3x ext)+ SATA III no need extra Power(Chipset:FL1100+JMS567)

Specifications

Specifications:
- Fully compliant with one-lane (x1) PCI Express 2.0 specification
- Three (3) external 5Gbps SuperSpeed USB 3.0 ports
- One (1) internal SATA III 6Gbps SATA 3.0 port
- SuperSpeed USB 3.0 offers 10 times performance increase over Hi-Speed USB 2.01
- USB 3.0 complies with Intel eXtensible Host Controller Interface (xHCI)
- Up to 6Gbps maximum transfer rate1
- SuperSpeed USB 3.0 is backwards compatible with USB 1.0/1.1/2.0 devices (data transfer rate at 1.5/12/480Mbps)
- SuperSpeed USB 3.0 is fully compatible with original USB system, peripherals and cables
- Built-in with 15-pin SATA Power Connector for added power source to better support power hungry bus-powered devices3
- Ideal connection for digital cameras, scanners, printers, external CD/DVD/Blu-Ray writers, hard disk drives, flash memory drives and etc.
- Fully Plug-N-Play and Hot Swap compatible
- Supports 32-bit & 64-bit Windows Vista/Server 2008/Windows 72/8/MAC OS 10.8.2 or Above

*To achieve the maximum throughput, the PCI-Express slot must be version 2.0 or higher. Performance per port may decrease if multiple ports are transferring data simultaneously due to limited throughput of the PCI-Express slot.

System Requirements:
- PC with 512MB of RAM and 1.0GHz or faster processor
- One (1) available PCI Express 1.x or 2.x slot
- 32-bit & 64-bit Windows? Vista/Server 2008/Windows 71/8/MAC OS 10.8.2 or Above

1 To meet USB 3.0 transfer speed, high quality USB 3.0 cables and devices are required
2 Supports both 32-bit & 64-bit OSes
3 Make sure the power is well connected, otherwise you will see a "Power Surge on Hub Port" message error and no 5V bus power in USB ports.

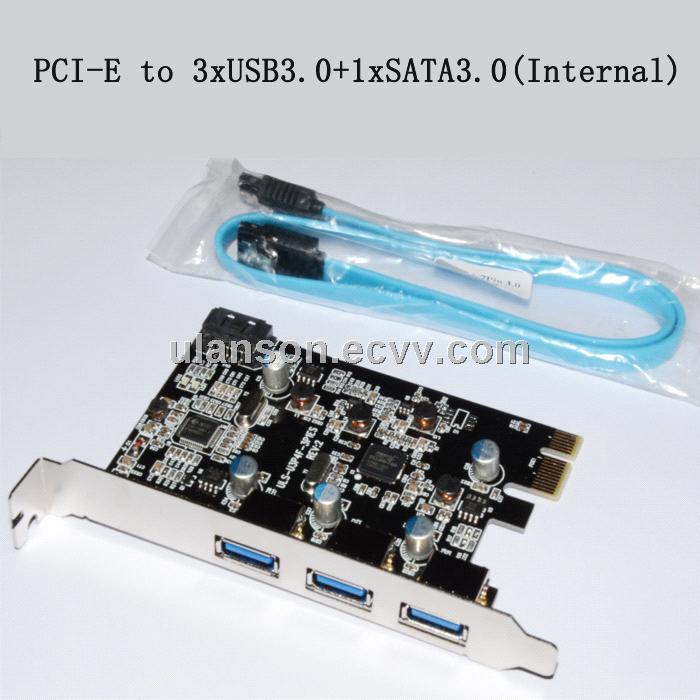

Package Contents:
- One (1) PCI Express card
- Software drivers CD
