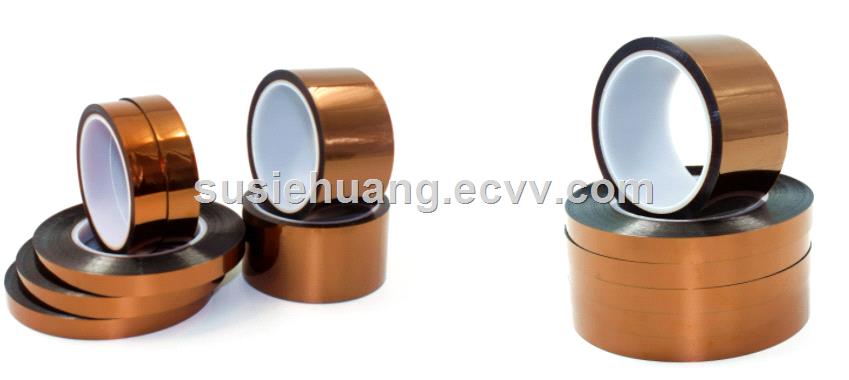

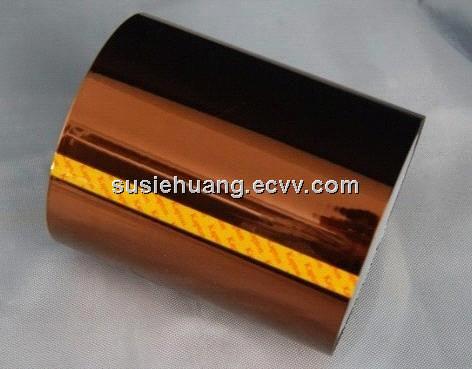

Kapton Polyimide Silicone Adhesive Golden Color Amber Pi Insulation PCB High Temperature Resist Insulation Tape(J-630)

Supply Ability:	100,000 Square Meter(s) per Week
Shipping:	BY SEA/ BY AIR
Payment Terms:	T/T

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	packed in exported cartons

Quick Details

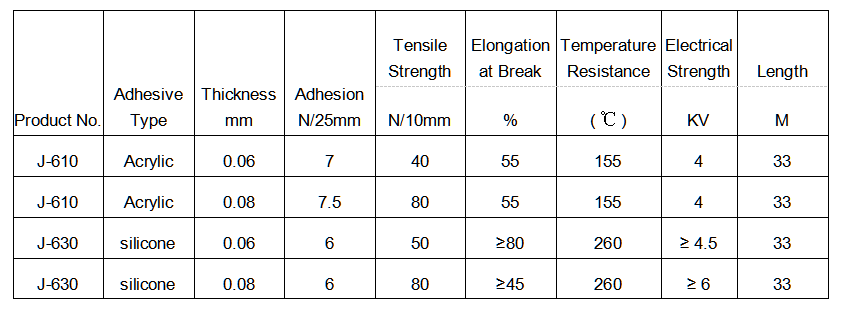

Rated Voltage: 4.5KV
Application: High Temperature
Material: polyimide
Type: Insulation Tape
Brand Name: No brand
Tensile Strength: 125N/25mm
Model Number: J-630
Rated Voltage: 4.5KV
Thickness: 0.06mm
Adhesive: Silicone
Adhesion to Steel: 6N/25mm
Temperature Resistance: 260degree
Length: 33M

Specifications

Polyimide Tape

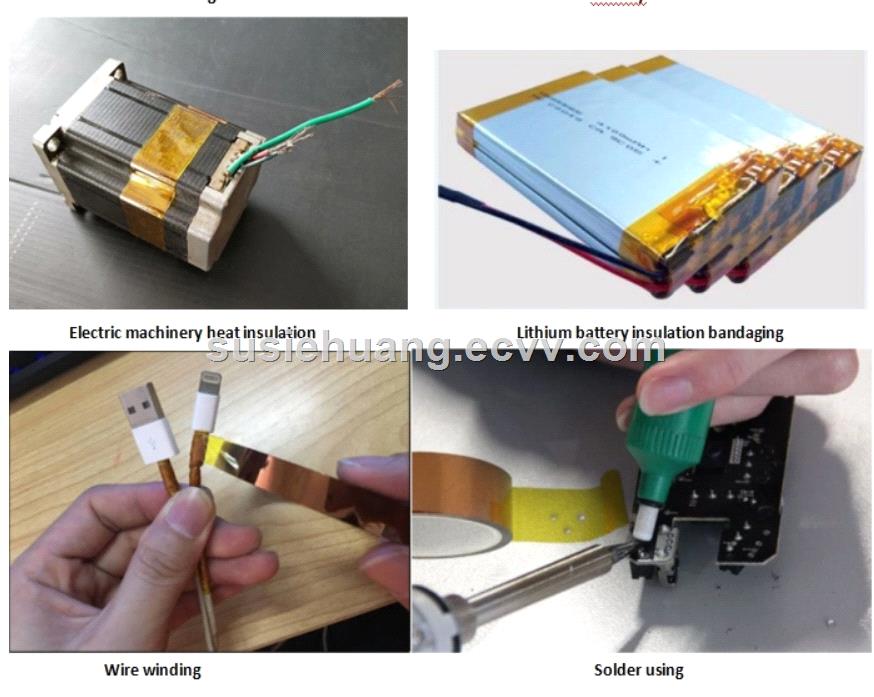

with Polyimide film as bottom material, Polyimide tape Enjoys characteristics of good anti-high temperature, and excellent mechanical property, with different anti-temperature grade by different sticky agent. It is widely used for motor insulation, transformer loopbundIng, motor loop fixation and external insulation.

FAQ

1.Q:Why choose us?
A:We Specialized in fiberglas tape, pet tape,polyimide tape and some other kinds of tapes for many years. So we can control the quality strictly and provide the best service for you.
2.Q:how to get a quotation?
A:Please inform what kind of tapes / thickness / size / quantity you need. If you can't get the exact information about tape, tell us the application / Technical data sheet / pictures if you have.
3.Q:Can I get a sample before place an order? Is sample free?
A:If our quotation is acceptable or you are interested in our products, pls contact our sales team about samples request. We can offer free samples to customers to check the quality and application first.(Notice: Buyer should undertake the shipping cost for samples.)
4.Q:Can our private logo/label be printed on the tapes/paper core/packaging?
A:Sure, your own private logo/ label can be printed on the packaging upon your legal authorization, we support OEM&ODM service to our clients' requirement for a long time, you just need to share the design file
5.Q:how long does it take to finish the production and shipment of the order?
A:Normally 5-15 days after we receive the deposit about the order.
6.Q:how about your payment methods?
A:Payment terms: T/T, DP, OA, Paypal, Etc. We can also accept payment by RMB. Different payment terms relate with different price levels. Usually for small amount 30% as deposit, the balance should be paid before shipment. Or 30% as deposit, balance against BL copy.
7.Q:What's your terms of shippment?
A:Generally Shipped by sea(Shanghai port), also we can ship by air express/train.
