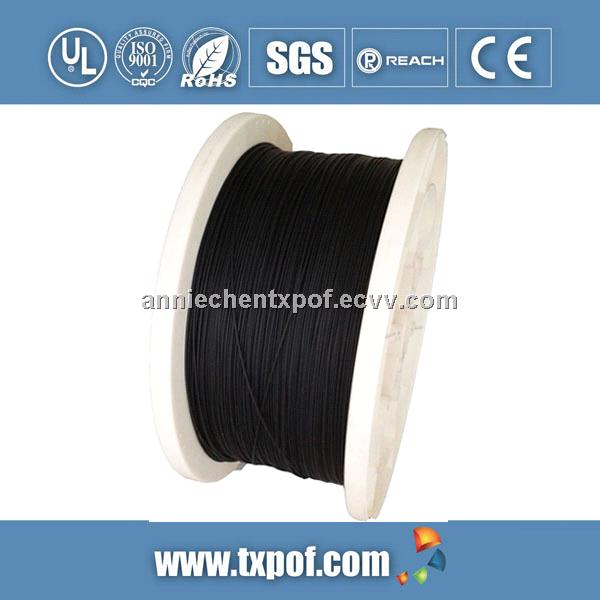

2.2mm PMMA plastic optical fiber cable
| FOB Price: | 0.10 - 0.30 USD/Meter |
|---|---|
| Supply Ability: | 500,000 Meter per Day |
| Shipping: | FOB shenzhen |
| Payment Terms: | T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | carton |
Quick Details
- Brand Name: TXPOF
- Model Number: TX-CC1000-1
- Fiber core material: PMMA
- Fiber core diameter: 1.0mm
- Diameter: 2.2mm
- Jacket color: black /customize accept
- Jacket material: PE,customize accept
- Attenuation: within 190dB/km
- Length: 2500m/roll
- Package: carton
- Application: short distance data transmission
- Certificate: REACH,SGS,ISO,UL
Specifications
Optical fiber cable
Detailed product description
1. Product name: optical fiber cable
2. Fiber core material: PMMA
3. Fiber cladding material: Fluorinated polymer
4. Core refractive index: 1.492
5. Numerical aperture: 0.5
6. Number of fiber: 1
7. Outer jacket material(color): PE(Black)
8. Minimum bend radius: 25mm
Specification
Item | Unit | Specification | Test Condition | |
Structural parameters | Core diameter | μm | 980±60 | JIS C 6862 |
Cladding diameter | μm | 1000±60 | ||
Cladding non-circularity | % | ≤6 | ||
Outer Jacket Diamter | mm | 2.2±0.07 | ||
Approximate Weight | g/m | 4 | ||
Optical properties | Transmission Loss | dB/km | ≤190 | 650nm (JIS C 6863) |
Transmission Loss Under 95%RH | dB/km | 210 | ||
Mechanical Characteristics | Repeated Bending Endurance | 10000 Times | Loss Increment=<1dB | JIS C 6861 |
Tensile Strength | N | 70 | ||
Twisting Endurance | 5Times | Loss Increment =<1dB | ||
Impact Endurance | 0.4N.m | Loss Increment =<1dB | ||
Product code
Item | Code | Cable outer diameter(mm) | Jacket color and material | Attenuation (dB/km) | Temperature (°C) | Length (M) |
PMMA plastic optical fiber cable | TX-CC0500-1 | 1.0±0.07 | Black PE | ≤210 | -50~+70 | 1500 |
TX-CC0750-1 | 2.2±0.07 | Black PE | ≤200 | -50~+70 | 2500 | |
TX-CC1000-1 | 2.2±0.07 | Black PE | ≤190 | -50~+70 | 2500 | |
TX-CC1500-1 | 3.0±0.07 | Black PE | ≤200 | -50~+70 | 700 | |
TX-CC2000-1 | 3.8±0.07 | Black PE | ≤200 | -50~+70 | 350 | |
TX-CC3000-1 | 5.0±0.07 | Black PE | ≤200 | -50~+70 | 150 | |
TX-CC1000-2 | 2.2X4.4±0.10 | Black PE | ≥200 | -50~+70 | 1250 |
Feature
1. Low cost for maintenance, saving cooper resource, energy-saving and environment protection.
2. Immune to electromagnetic wave radiation, no noise effect, good capacity of resisting disturbance.
3. Low weight, flexible, high resist flutter and determinate cleavage, durability.
4. High bandwidth, high speed, good performance.
5. High privacy protection, reliable safety.
6. Optimum bandwidth, high speed, good performance.
7. Close coupling, high illumination, stabile attenuation.
8. Easy installation, needlessness for special tools and fusion welding, and cut at will by your request.
9. Waterproof, Dampproof, Antimagnetic, free of magnetic and thunders
Application
1. FTTH (fiber to home)
2. Consumer electronics
3. Automobile intelligence
4. Industry control and monitor system
5. Military communication
More photos
Packaging & Shipping
Packaging: carton. Customized accept
Shipping:
1.Normally we arrange shipment by air or by sea through your forwarder.
If you have no forwarder, we can find cost-effective forwarder for your reference.tc.
2. If your order is not big enough.
Door To Door Service is a wise Choice, UPS, FEDEX, DHL, EMS,etc.
