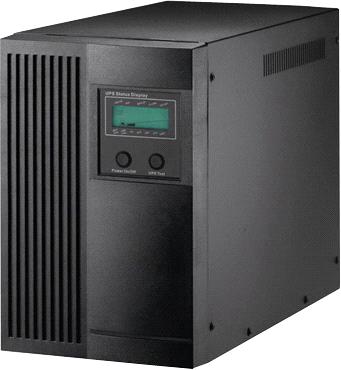

L500VA L650VA L800VA Line Interactive UPS

FOB Price:	30.00 - 35.00 USD/Piece
Supply Ability:	50,000 Piece/Pieces per Month
Shipping:	30
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Brand Name: SANTAKONLINE
Phase: Three Phase
Protection: Short Circuit
Weight: 5
Output Voltage: 220
Type: Line Interactive
Application: Computer

Specifications

Character:
Line interactive design
Microprocessor control guarantees high reliability
Equipped with 2-step boost and 1-step buck AVR to stabilize input voltage
Built-in DC start function enables UPS to be started up without AC power supplied
Auto restart while AC recovery
User replaceable battery design
Energy saving function (UPS green mode)
50/60Hz frequency auto sensing
Provide lightning, surge, short-circuit and overload protection
Built-in CCCV battery charger and battery auto test
Description:
The most suitable and the best Quality Protection for Small Servers, and Workstations & PCs.

Specifications:

MODEL		L500VA L650VA L800VA Line Interactive UPS
Capacity		500VA / 650VA/800VA
Input	Voltage	110/115/120VAC or 220/230/240VAC
	Voltage Range	86VAC~136VAC or 172VAC ~272VAC (+/-25%)
	Frequency	47Hz~53Hz or 57Hz~63Hz (Auto Sensing)
Output	Voltage Regulation (Battery Mode)	110/115/120VAC or 220/230/240VAC
	Frequency	50Hz or 60Hz +/-1Hz
	Waveform	Simulated Sinewave
	Transfer Time	< 6ms (Typical)
Battery	Battery Type	12V/4.5AH * 1pc
	Recharge Time	5Hrs to 90% after complete discharge
	User's Replacement	Yes
	Battery Protection	Over discharge protection & Short circuit protection by fuse
	Advanced Battery Management	Yes
	Battery Back-up Time	The UPS will back up for 120 seconds and then shut off automatically
Function	Display	LED status indicators for AC normal (Green), Back-up (Yellow), UPS cut off (Red)
	Alarm	Buzzer on for Back-up mode, Battery low, Overload
	Output Short Protection	AC fuse and Electronic circuit (Line mode), Electronic circuit (Back-up mode)
	Communication Port	Shutdown software for Windows 95/98/NT/2000/ME/XP/Vista
	Modem/Phone Protection	RJ-11
	Lightning/Surge Protection	240joules
	AVR (Auto. Voltage Regulation)	Yes, 2-step Boost / 1-step Buck
	DC Start Function	Yes
	Auto. Restart UPS	Yes
	Over/Under Voltage Protection	Yes
Environment	Safety Standard	CE (EN50091-1, EN62040-1-1) & UL
	EMC Standard	FCC Part 15 Class B,CE (EN50091-2, EN55011, EN61000-3-2, EN61000-3-3)
	RoHS	Meets RoHS standard
	Operating Temperature	0 ~ 40 °C
	Relative Humidity	0 ~ 95%, non-condensing
	Audible Noise	< 40dB at 1M
Physical	Dimension (DWH)	356 * 130 * 232mm
Physical	Net Weight	5.0Kgs
Design, Manufacture, Services		ISO 9001-2000
Warranty		1 year
