JIS F7301/F7303 Marine Valves- Bronze or Brass Globe Valve 5k 16k

FOB Price:	1.00 - 2.00 USD/Piece
Supply Ability:	1,000 Piece(s) per Week
Shipping:	according to the requirments
Payment Terms:	L/C, D/P, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	3-plywood box

Quick Details

Brand Name: VG or according the client's requirement
Temperature of Media: Low Temperature
Material: Brass
Pressure: Low Pressure
Standard or Nonstandard: Standard
Model Number: F7301 F7303
Port Size: 15-65
Media: Water
Power: Manual
Structure: Stop

Specifications

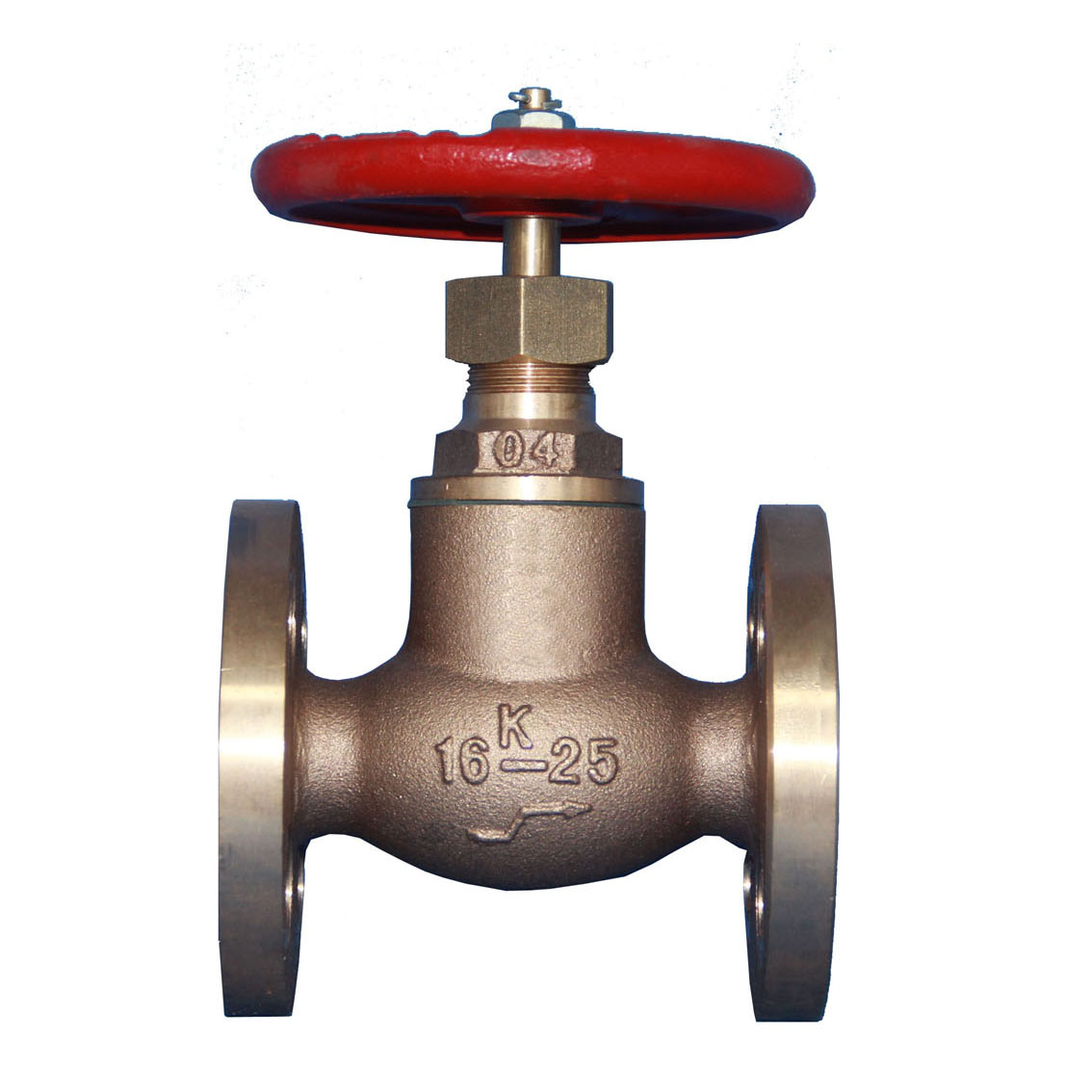

JIS F7301F7303 Marine valves Bronze or Brass Globe valve

Description;

1)F7301-Marine Bronze 5K Globe valves

Nominal pressure; 5K (0.49Mpa)

DN 15, 20, 25, 32, 40, 50, 65, 80, 100

2)F7303-Marine Bronze 16K Globe valve

Nominal pressure; 16K(1.56Mpa)

DN 15, 20, 25, 32, 40, 50

1. End Type; Flange

2.Straight Type

3. Main material;

Body/Bonnet/Disc; BC6 or brass

Stem; Brass C3771BD;

Gasket; Non-asbestos;

Hand-wheel; FC200

4.Application; Sea water piping, fresh water piping, oil piping and steam piping.

5.Function: Such valves are used for on-off duty and regulating the flow rate.
