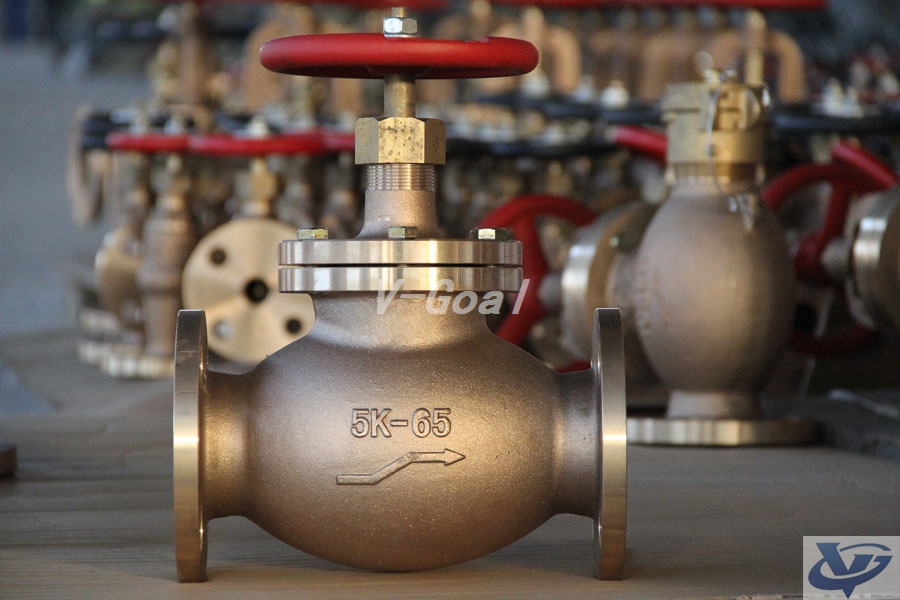

JIS Marine Valve - Bronze or Brass Screw-Down Check Globe Valve, Non-Return Valve

Supply Ability:	5,000 Piece(s) per Month
Shipping:	according to the requirments

Inquiry Now

Product Details

Place of Origin:	Shandong in China
Packaging Details:	3-plywooden box

Quick Details

Brand Name: VG or according the client's requirement
Temperature of Media: Medium Temperature
Material: Brass
Pressure: Medium Pressure
Standard or Nonstandard: Standard
Model Number: F7351 F7409
Port Size: 15-65
Media: Water
Power: Manual
Structure: Stop

Specifications

Bronze check globe valve
Description;

1)F7351-Marine Bronze 5K Screw-down Check Globe valve

Nominal pressure; 5K (0.49Mpa)

DN 15, 20, 25, 32, 40, 50, 65, 80

2)F7409-Marine Bronze 16K Screw-down Check Globe valve

Nominal pressure; 16K(1.56Mpa)

DN 15, 20, 25, 32, 40, 50

1. End Type; Flange

2. Straight Type

3. Main material;

Body/Bonnet/Disc;BC6; or brass

Stem; Brass C3771BD;

Gasket; Non-asbestos;

Hand-wheel; FC200

4.Application;Sea water piping, fresh water piping, oil piping and steam piping.

5.Function:High flow, Zero leakage check globe valves are used for on-off duty and regulating the flow into one direction.
