Jiangmen Tuolong Technology Lighting Co., Ltd.
China Manufacturer with main products: LED, Underground Lamp, Underwarter Lamp, Street Lamp, Ceiling Lamp, Spot Lamp, Outdoor LED Lighting, Indoor LED Lighting |
new design street light ideal for public lighting 90W LED street light
| FOB Price: | 1.00 - 600.00 USD/Piece |
|---|---|
| Supply Ability: | 10,000 Piece/Pieces per Month |
| Shipping: | 7-15 days after receiving formal order and deposit |
| Payment Terms: | T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | neutral box with carton for packing LED street light |
Quick Details
- LED Light Source: LED
- Input Voltage(V): 220VAC
- Lamp Power(W): 90W
- Lamp Luminous Flux(lm): 9000
- Lamp Luminous Efficiency(lm/w): 100
- CRI (Ra>): 80
- Color Temperature(CCT): Warm White
- Working Temperature(℃): -20 - 40
- Working Lifetime(Hour): 50000
- Lamp Body Material: Aluminum Alloy
- IP Rating: IP65
- Certification: CE,ROHS
- Warranty(Year): 2
- Brand Name: TUOLONG
- Model Number: TL-LD-07B
- Light Source: LED
- Item Type: Street Lights
- LED Light Source: Bridgelux
- Input Voltage(V): 220
- Lamp Power(W): 90
- colour temperature: 3000K 4200K 6500K
- LED colour: white and warm white
- LED quantity: 90 pieces LED
- street light material: aluminum

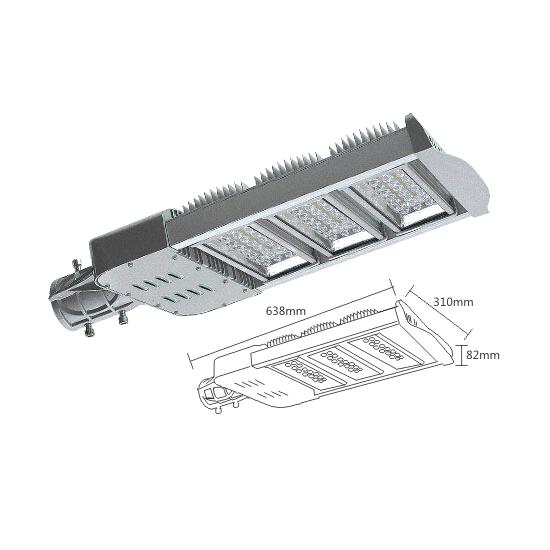

- light size: 638x310x82 mm
- installing size: 61 mm
- IP rating: IP65
- product certificate: CE RoHS
Specifications
LED High Power Street Light Road Lamp Outdoor Industrial 110VAC-240VACCE RoHS Certification and IP65 Rating
| LED secondary opticsLenses in our street lighting are made of highest grade PMMA with more than 90% light transmittance. We can fulfill the most demanding technical requirements with different number and position of lenses. Our street lights have low glare. |
LED DriverIt is designed for a life time of at least 30.000 h.We can offer wireless management system or NEMA socket with photocell.
|
| LED chipUsing Bridgelux or Epistar LED chips, with standard efficiency at least 130lm/W at Tj = 85 celsius. Other brands can also be used. Color temperature is pleasant neutral white. Also offer warm white or pure white color temperature for different street lighting applications upon request. | Mechanical ConstructionConstruction is made of die casted and extruded aluminum. Casted parts are dust painted and thermally treated.Anodizing is minimum 20 micron on extruded parts. Housing ensures IK10 and IP65. All screws are made of stainless steel material. |
|
Thermal ManagementThermal management of housing and LED boards enables sufficient heat dissipation, so LEDs and driver operate on safe temperature to ensure long life time.
|
FlexibilityFlexibility is one of the key advantages of our street lights. We can change the number of LED modules and position LED lenses in 4 different directions. We can drive the LED with any current from 300 – 700mA depending on street lamp size and client's requirements. |
| Installation with easeStreet light can be installed without any additional adapters on the pole or bracket. After the final installation you can change the angle of inclination from -15 deg up to +15 deg with a step of 5 degrees. Wires can be connected via push terminals. | Perfection in productionWe are using only best components / brands in our street light.PCB boards are assembled on automatic production line, every panel is optically and electrically 100% controlled. Every street light is electrically tested by special protocol with certified equipment. |
1.Body Material: Aluminum
2.Usage: Industrial,Roadway,Sidewalk,Street lighting
3.Warranty:2
4.Wattage: 90W
5.Certification: CE, RoHS
6.Voltage: 110-240V
7.Power Source: AC
8.Protection Level: IP65
9.Model Number: TL-LD-07B
10.LED Qty*power: 90x1w LED
11.Color temperature: 2500-7000K
12.LED Brand: US Bridgelux 110-130lm
13.Ambient temperature:3000K/4200K/6500K
14.Can choose 120° 60° beam angle
