Cable Laying Guides,Manhole Quadrant Roller

FOB Price:	10.00 - 60.00 USD/Set
Supply Ability:	3,000 Set/Sets per Month
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Miller Wire Feeder

Price:

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	carton

Specifications

The ground cable rollers and corner cable rollers from Katimex have particularly abrasion resistant aluminum alloy rollers. They run maintenance-free on dirt and dust-proof bearings. The robust steel frames are completely galvanized and guarantee a long working life even under extreme conditions.

Corner cable rollers: guide the cable surely round each curve and cable friction is minimized. Even heavy duty cables run lightly off the rollers. The required winching power is considerably reduced and winching wires are no longer abraded as much.

Ground cable rollers: Thanks to the compact construction there is sufficient free space beneath the rollers for cable already laid. The ground cable rollers are extremely stable with their low center of gravity. Thanks to the pronounced groove in the rollers the lateral stability during cable guiding is much greater than for steel rollers with lesser grooving.

Cable rollers ,.Cable Sheaves,Hangers , Cable Guides,Straight line cable roller,Corner roller,Hoop Roller--Wu Zhou power tools

Specifications

Used in the cable changing the direction place protection cable not to wear.

Corner Cable Drum Jacks

Name:Cable Rollers, cable pulley, Cable Sheaves, Cable Drum Jacks, direct deal, corner roller

Detailed Description

Used in the cable changing the direction place protection cable not to wear.

Features

Divides into according to the material quality: Alloy wheels and MC nylon wheels

Type: Tubular and plate type

Detailed Product Description--Wu Zhou power tools

Cat. No.	Rated Load (KN)	Construction	Weight (kg)
CR0110	10	Cast aluminum frame, aluminum (nylon) roller	5.4/3.6
CR0111	10	Steel tubing frame, aluminum (nylon) roller	4.5/3.1
CR0112	10	Steel tubing, long legs, aluminum (nylon) roller	5.8/4.2

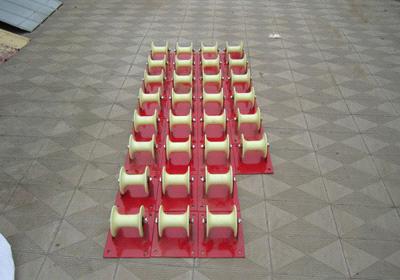

CR0113	10	Steel plate base, aluminum (nylon) roller	5.5/3.7
CR0114	10	Steel tubing frame, aluminum (nylon) roller	4.7/3.3
CR0115	10	Steel tubing frame, aluminum (nylon) roller	4.7/3.3

Corner Roller :Frames of corner rollers are linked together with stake pins to form a suitable bend to guide cables around the corner.--Wu Zhou power tools

Cat. No.	Rated Load (kN)	Max. Cable Dia. (mm)	Weight (kg)
CR0116	10	150	11
CR0117	10	150	15

Manhole Rollers: Mounted on the verge of manhole to protect cables and pulling ropes.

Cat. No.	Rated Load (kN)	Weight (kg)
CR0118	10	10.8

Multi-Roller :Used to protect the cable when it enter or run out of a manhole. Easy to use.

Cat. No.	Rated Load (kN)	Weight (kg)
CR0120	10	10.8

Multi-Roller: Used to protect the cable when it enter or run out of a manhole. Easy to use.

Cat. No.	Rated Load (kN)	Weight (kg)
CR0125	80	3.3
CR0126	90	3.5
CR0127	100	3.8
CR0128	130	6
CR0129	150	7.2
