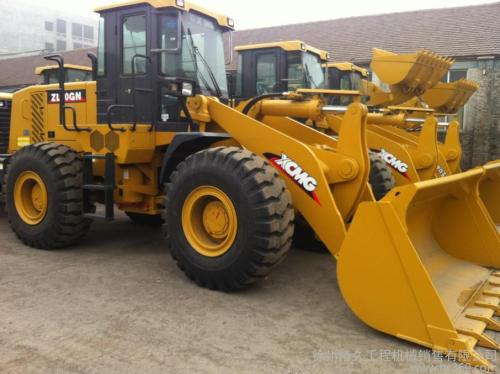

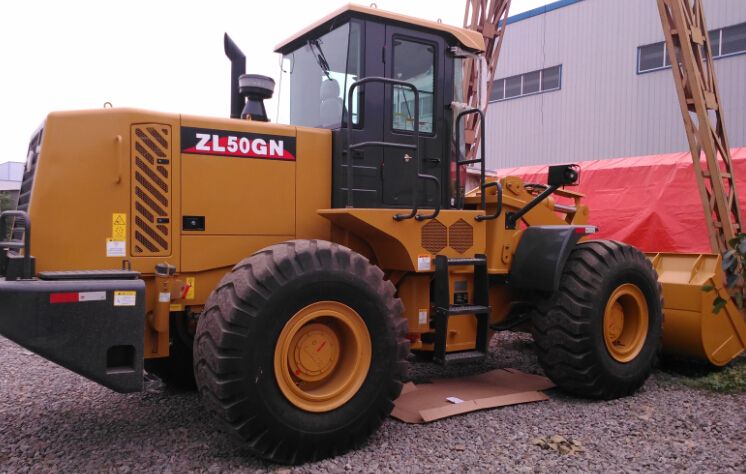

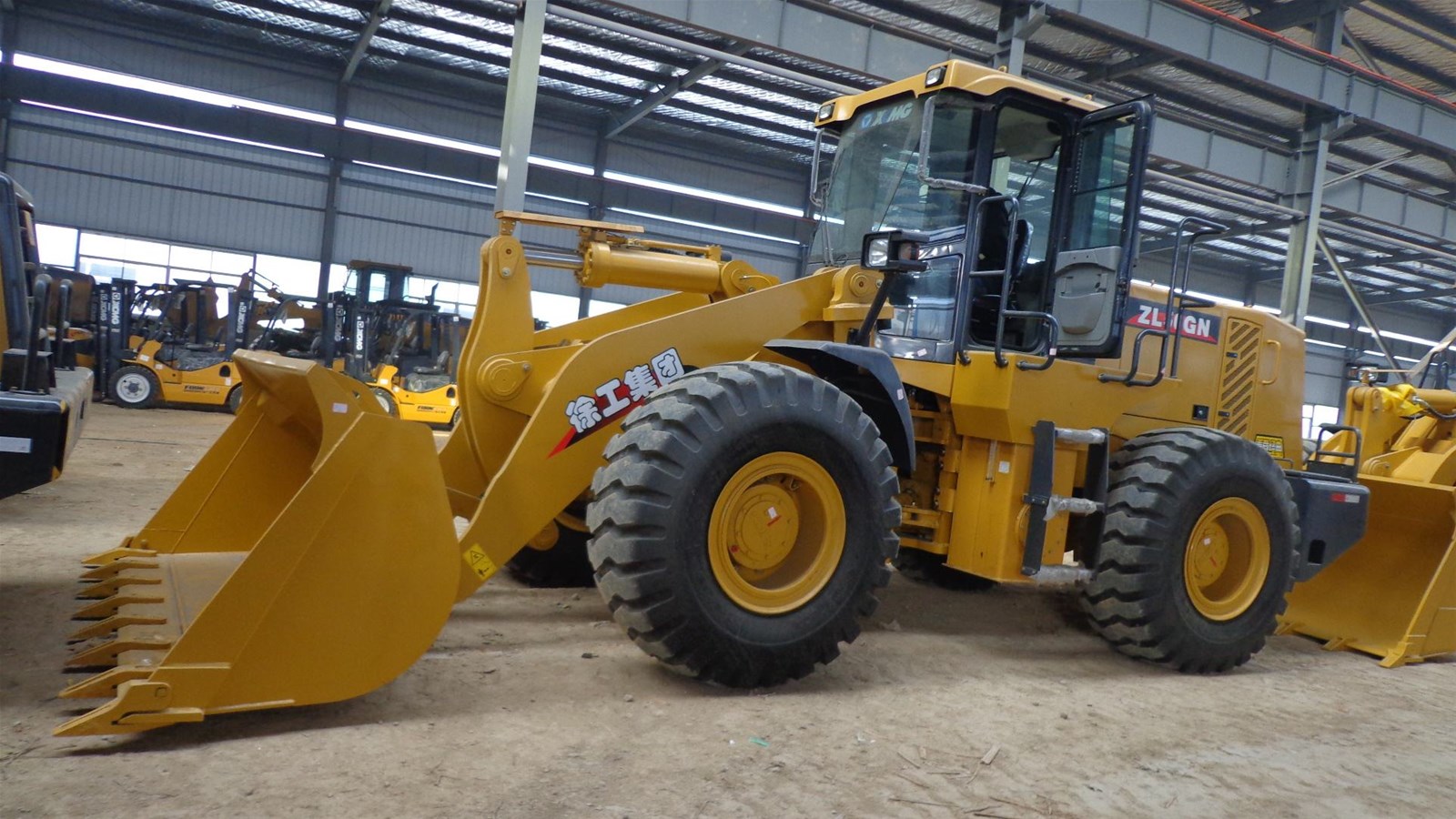

3.0TON/1.8M WHEEL LOADER, XCMG Brand, ZL50GN Model

Supply Ability:	4,000 Unit(s) per Month
Shipping:	nin 25 days
Payment Terms:	L/C, T/T, Western Union

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	packed in nude, by ro-ro or bulk ship.

Quick Details

Moving Type: Wheel Loader
Type: Front Loader
Brand Name: XCMG
Condition: New
Year: 2018
Make: XCMG
After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Certification: ISO CCC
Rated Load: 5t
Dimension(Long * Breadth * High): 8165x3016x3485
Model Number: ZL50GN
Drive Type: 4x2
Elevator Type: hydraulic
Usage: lifting and transporting
Loder Weight: 18000kgs
Dimension(L*W*H): 7050x2496x3120
Max Lifting Height: 3200mm
Hoisting Speed: 2s
Rated Loading Capacity(kg): 3000kgs
Condition: New

Specifications

Compact Wheel Loader with Model ZL50GN, Working Weight 17500kgs,

Bucket Capacity 3m3, 5000kgs

Product brief introduction

ZL50GN wheel loader is Xugong rely on international technology resources, the latest research and development of intergenerational products! this model breaks the traditional structure and uses variable displacement piston pump to provide different pressure and flow according to specific working conditions and steering hydraulic system to achieve automatic power distribution (APD). the fuel efficiency is greatly improved with an average energy saving of 15%.

XCMG V series loaders focus on customer value, emphasizing customer experience, is the major port, mining, engineering construction, logistics and other industries organize the production of the preferred equipment.

ZL50N series loaders lead the development of China's loader industry for more than ten years.

Specification:

ITEM	SPECIFICATION
Type:	Wheel type
Overload type	Front overloading
Model	Middle type
Technical specification
Working weight	17500kgs
Bucket volume	3.0m3
Rated loading weight	5000kgs
Max.Digging powerkN)	170KN
Max.Towing power	165KN
Discharge height	3090mm
Discharge distance	1130mm
Min.Turning radius	7300mm
Lifting time	6s
Gradability	70%
Engine
Cylinder	6
Engine model	WD10G220E21
Engine type	Turbo, water colling
Rated power	162KW
Ratyed speed	2200rpm
Max.Torque	930N.M
Engine output	9.726L
Output standard	Euro II
Brand	Wechai
Transmission
Forward I	11.5km/h
Forward II	38km/h
Reverse I	16.5km/h
Dimension
Overall dimension	8165x3016x3485mm
Wheelbase	3300mm
