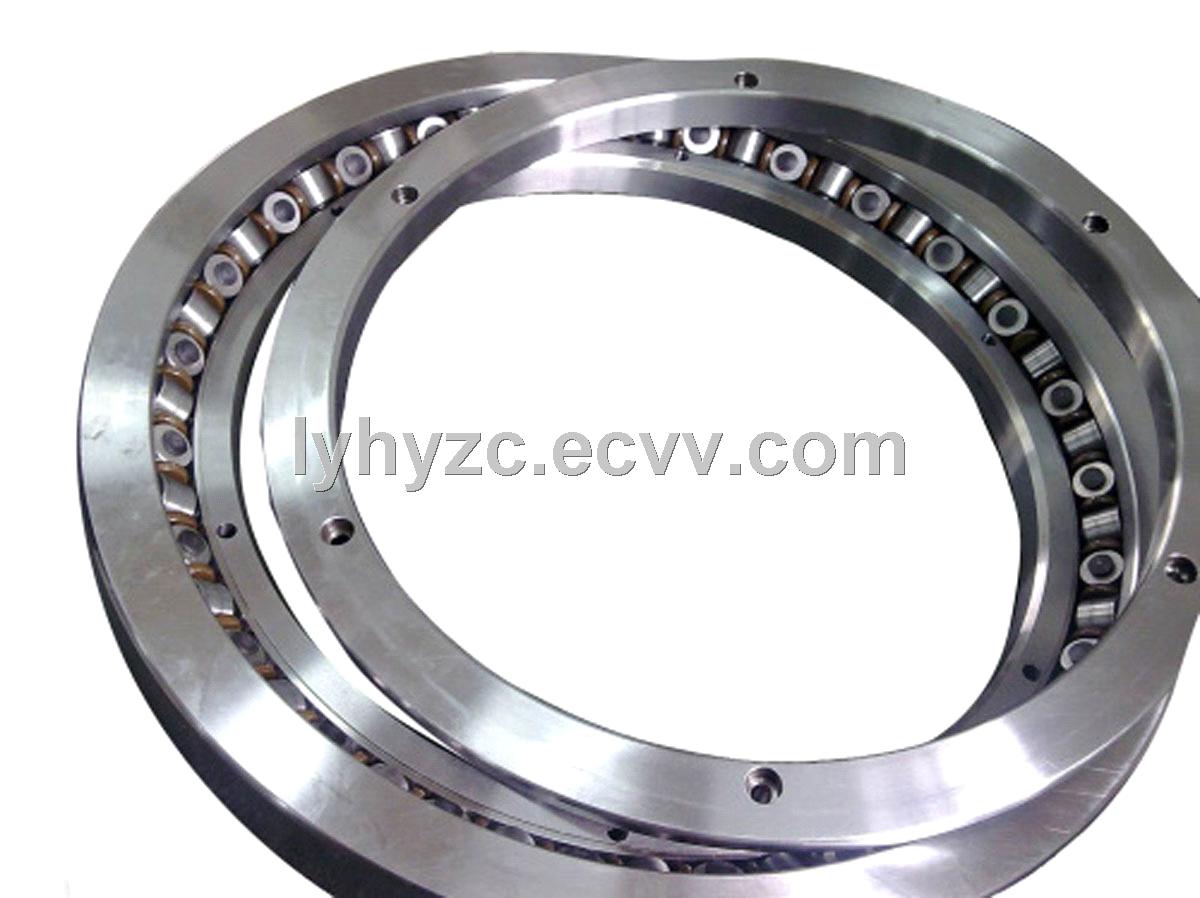

Thin Section Bearing-Crossed Cylindrical Roller Bearing (SX011880)

Specifications

Details for thin section crosed roller bearing SX011880:
OD=500MM
ID=400MM
H=46MM
W. T. =24KG
Material: Chrom Steel GCr15SiMn
More details, please contact us sooner...

Description of crossed/cross roller thin section bearings:
With the Cross-Roller Ring, cylindrical rollers are arranged crosswise, with each roller perpendicular to the adjacent roller, in a 90V groove, separated from each other by a spacer retainer. This design allows just one bearing to receive loads in all directions including, radial, axial and moment loads. Since the Cross-Roller Ring achieves high rigidity despite the minimum possible dimensions of the inner and outer rings, it is optimal for applications such as joints and swiveling units of industrial robots, swiveling tables of machining centers, rotary units of manipulators, precision rotary tables, medical equipment, measuring instruments and IC manufacturing machines.

Features
1. High precision: Precision at P4, P2.
2. High rigidity: This series bearings are with preload.
3. High load capacity: This series bearings can support axial load, radial load, and tilting load.
4. Small volume: This series bearings can save space for the machine.

Application
Crossed cylindrical roller bearings are widely applied in the precision rotary table, rotary joint of manipulator, medical equipment, and measuring instrument etc

Thin section cross cylindrical roller bearing:
Crossed cylindrical roller bearings: RB series
RB5013, RB6013, RB7013, RB8016, RB9016, RB10016, RB10020, RB11012, RB11015, RB11020, RB12016, RB12025, RB13015, RB13025, RB14016, RB14025, RB15013, RB15025, RB15030, RB16025, RB17020, RB18025, RB19025, RB20025, RB20030, RB20035, RB22025, RB24025, RB25025, RB25030, RB25040, RB30025, RB30035, RB30040, RB35020, RB40035, RB40040, RB45025, RB50025, RB50040, RB50050, RB60040, RB70045, RB80070, RB90070, RB1000110, RB1250110

Crossed cylindrical roller bearings: RE series
RE5013, RE6013, RE7013, RE8016, RE9016, RE10016, RE10020, RE11012, RE11015, RE11020, RE12016, RE12025, RE13015, RE13025, RE14016, RE14025, RE15013, RE15025, RE15030, RE16025, RE17020, RE18025, RE19025, RE20025, RE20030, RE20035, RE22025, RE24025, RE25025, RE25030, RE25040, RE30025, RE30035, RE30040, RE35020, RE40035, RE40040, RE45025, RE50025, RE50040, RE50050, RE60040,

Crossed cylindrical roller bearings: CRBC series
CRBC5013, CRBC6013, CRBC7013, CRBC8016, CRBC9016, CRBC10020, CRBC11020, CRBC12025, CRBC13025, CRBC14025, CRBC15025, CRBC15030, CRBC20025, CRBC20030, CRBC20035, CRBC25025, CRBC25030, CRBC25040, CRBC30025, CRBC30035, CRBC30040, CRBC40035, CRBC40040, CRBC40070, CRBC50040, CRBC50050, CRBC50070, CRBC60040, CRBC60070, CRBC600120, CRBC70045, CRBC70070, CRBC700150, CRBC80070, CRBC800100

Crossed cylindrical roller bearings: SX series
SX011814, SX011818, SX011820, SX011824, SX011828, SX011832, SX011836, SX011840
SX011848, SX011860, SX011868, SX011880, SX0118/500
