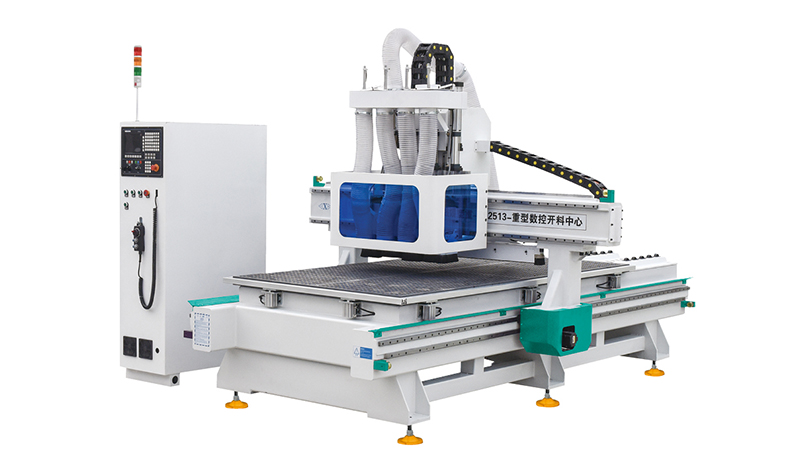

China 4-Spindle Type CNC Wood Router Machine for Sale
| FOB Price: | 8,000.00 - 30,000.00 USD/Set |
|---|---|
| Supply Ability: | 30 Set(s) per Month |
| Shipping: | 20 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Packaging Details: | standard export case |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: one year
- Certification: CE, ISO
- Brand Name: Jeesun
- Condition: New
- CNC or Not: CNC
Specifications
China 4-spindle type CNC wood router machine for sale
Main Features:
1). Strong machine structure welded by steel plates and tubes, high strength and stability with no deformation;
2). 4 spindles are equipped which can be shifted automatically for different works, saving much time and greatly increasing the working efficiency;
3). DSP or MACH3 control system with handle controller, no need to connect computer.
4). High precision Taiwan HIWIN Linear guide rail, life-time is 10 times longer than that of round ones.
5). this CNC router is suitable for processing any kinds of materials in bulk.
6). Excellent compatibility with different CAD/CAM software.
7). Break-point memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages.
Technical Parameters:
| Item | Specification |
| Model | JS- series |
| Working size | 1300x3100x200mm |
| Max Working Speed | 25000mm/min |
| Positioning Accuracy | 0.03/300mm |
| Re-positioning Accuracy | 0.03mm |
| Spindle Power | 6KW + 4.5KW |
| Spindle Speed | 0-18000RPM |
| Table Surface | Vacuum table |
| Tool magazine | Disc type ATC with 8 tools |
| Transmission | Rack and Pinion for Y axis, Ball Screw for X/ Z axis |
| Command Language | G Code, *uoo, *mmg, *plt |
| Operating System | NC studio control system |
| Computer Interface | USB Flash Memory 128M (U Disk) |
| Software Compatibility | Type3 software, Wentai software, Artcam software |
| Power Supply | 3-phase, 380V, 50Hz/60Hz |
| Working Environment | Temp: 0-45C, humidity: 80%, No condensation |
Application:
Furniture:
Panel furniture, official furniture, wooden door, cabinet, plate, tables, chair.Wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
Panel processing:
Insulating part, working of plastic; PCB; stone, marble, acrylic, PVC, MDF, organic glass and the cutting processing of cooper aluminum etc soft metal sheet.
