Haide Machinery Manufacturing Co., Ltd.
China Manufacturer with main products: Roll Forming Machine, Sandwich Production Line, Cutting Machine, Bending Machine, Decoiler, Slitting Machine |

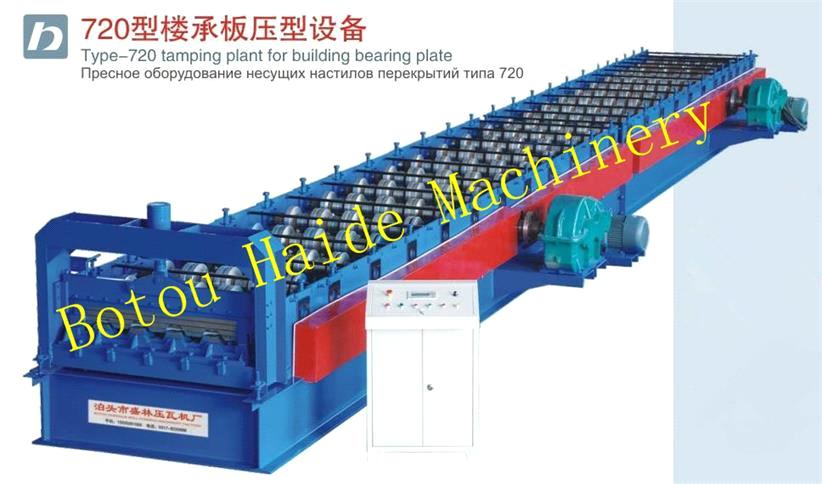

Haide 720 forming machine for building bearing plate
| FOB Price: | 35,000.00 - 39,000.00 USD/Set |
|---|---|
| Supply Ability: | 30 Set/Sets per Month |
| Shipping: | 30 working days after received the deposit |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | nude, imported computer control system packed with waterproof cloth. |
Quick Details
- Brand Name: Haide
- Model Number: 720
- color: blue
- certification: CE&ISO9001
- warranty: CE&ISO9001
Specifications
Specification:
1. Coil material thickness: 0.6mm-1.2mm
2. Coil width: 1000mm
3. Cover width: 720mm
4. Shaft material: 45# steel , outer diameter:80mm
5. Roller material: 45# steel
6. Steps of forming rollers : 24 steps
7. Chains transport
8. Forming speed: 6-12m/min
9. Main motor power: 18.5kw
10. Voltage:380v,50Hz,3Phase
11. Hydraulic Station: 1set
12. With hydraulic station, motor 4kw
13. Cutting press 20 ton
14. Hydraulic cutter
15. Blade and mold material: GCR12 steel with quenched treated 60-62℃
16. Cutting system: advanced hydraulic drive, automatic cutting after
forming, no distorting or wasting, high level safety factor.
17. Screen:3.2 inch text screen
18. PLC: Taida
19. Automatic length measurement
20. Automatic quantity measurement
21. Computer is used to control length and quantity. Machine will automatically cut to length and stop when required quantity is achieved
22. Length inaccuracy can be amended easily
