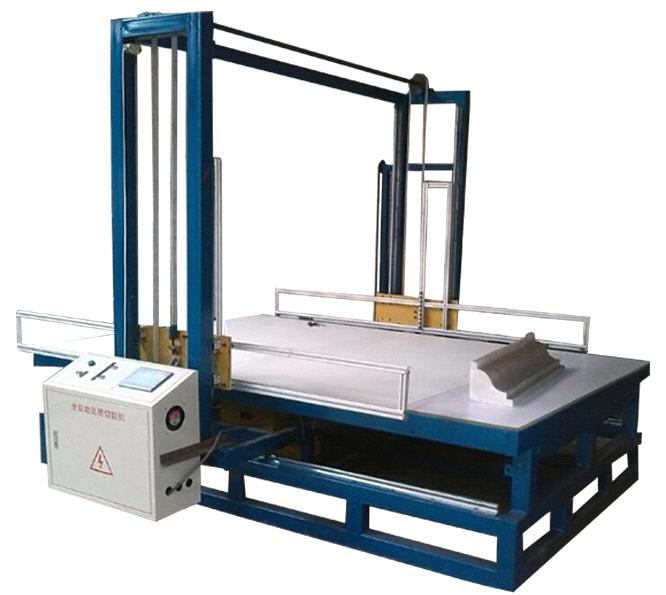

EPS Shape Cutting Machine(2D)

Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

band sawing machine for channel steel

Price:3,333.00-44,444.00 USD/Set

Min. Order:1 Set
Auto-feeding Single Head Cutting Machine KT-328...

Price:

Min. Order:1 Set
Waterjet Water Cutting Machine (DWJ 15 Series)

Price:5.00-15.00 USD/Set

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

--- The mechanical parts of the machine made of rectangular iron pipe and sliding part adopted linear sliding module for motion stability & high precision;

--- Machine adopts stepper motor with smooth movement and free speed-regulation, suitable for constantly shifting in special shape cutting;

--- Horizontal hanging cutting wire.20 heating wires can be installed and 20 same pattern and word can be cut at the same time;

--- The machine control system adopts PC + touch screen or PC+computer control.It can use draw various graphics by using CAD/CAM on the computer, direct cutting also cutting by file led into touch screen;

--- The machine has a process protection function, also has outage memory,backlash compensation etc.

Technical Data:

Item	(Unit/Mode)	EPSCNC2-2000x1240	EPSCNC2-3000x3000	EPSCNC2-4000x4000
Maximum cutting size	mm	2000x1240x1240	3000x3000X1240	4000x4000X1240
Hot wire length	mm	2000	3000	4000
Minimum cutting thickness	mm	0-1240	0-1240	0-1240
Cutting speed	m/min	0-3.5 Frequency control	0-3.5 Frequency control	0-3.5 Frequency control
Hot wire operating numbers at the same time	Piece	1---20	1--20	1----20
Hot wire diameter	mm	0.4-0.8	0.4-0.8	0.4-0.8
Motor power	kw	2.25	2.25	3
Transformer capacity	kw	8	8	8
Control mode		Auto	Auto	Auto
Control system		Auto CAD	Auto CAD	Auto CAD
Cutting pattern		2D	2D	2D
Outline dimensions	mm	2500x2000x2500	3500x3500x2500	4500x4500x2500
Weight	kg	1500	2000	2500
