Access Security Parking System Full Height Turnstile RS 997

 Security Access Control Pedestrian Full Height Turnstile RS 997
Specifications
Stainless steel automatic waist height turnstile
.Brushed
.Single/double
.304 grade stainless steel
.RFID access control
keywords:access control,full height turnstile,traffic barrier
parking system,pedestrian turnstile
full height barrier,full height turnstile gate
security turnstile,barrier gate

Product name: Full-height turnstiles

Model: RS997

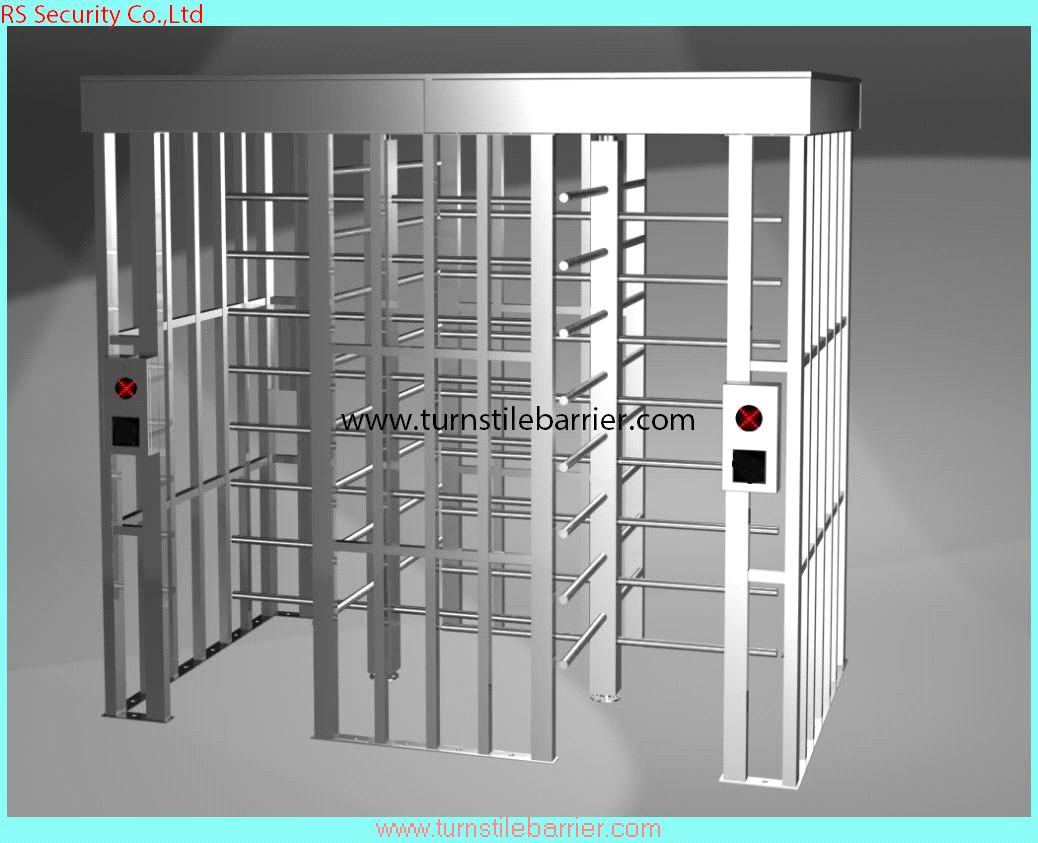

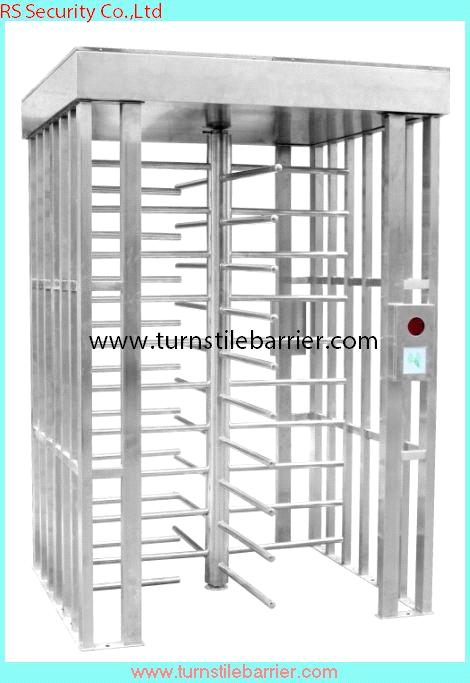

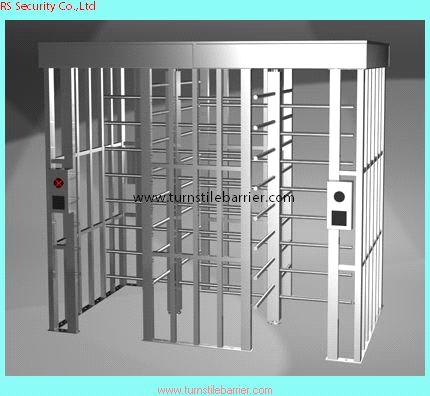

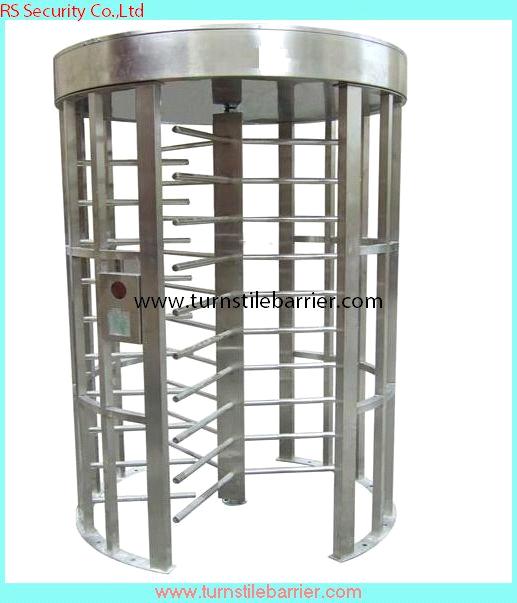

 Thefull-height turnstile, is a larger version of the turnstile, which eliminates the possibility (inherent in the waist-high style) of anyone jumping over the turnstile. It is also known as an iron maiden, or high-wheel.It is sometimes called a Rotogate, There are two types of full height turnstiles, High Entrance/Exit Turnstile or HEET and Exit-Only. The difference between them is that HEET turnstiles can rotate in both directions, thus allowing two-way traffic, while exit-only turnstiles can only rotate in one direction, thus allowing one-way traffic. Exit-only turnstilesare commonly used in mass transit stations to allow passengers to exit the system without interfering with those entering.

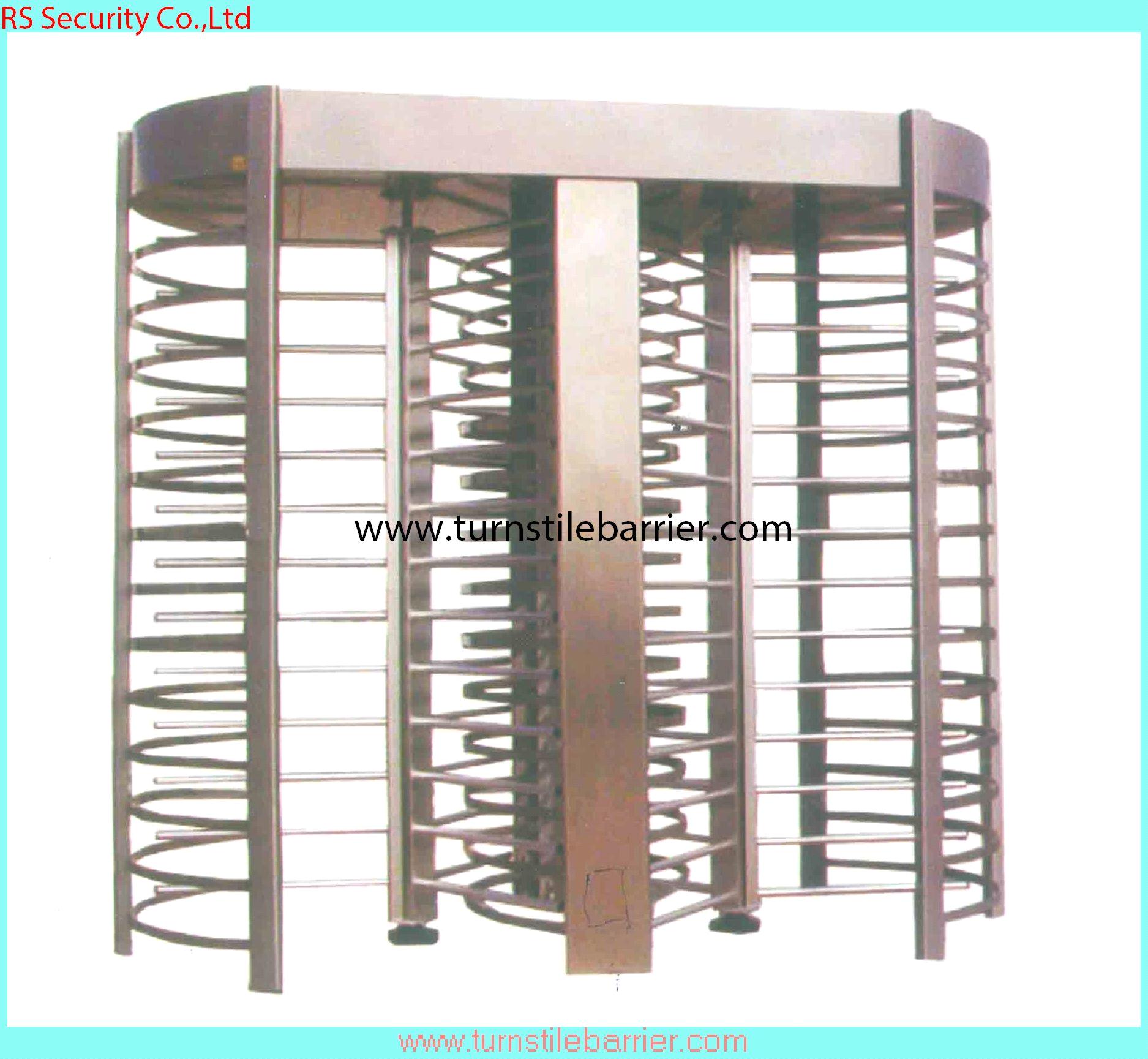

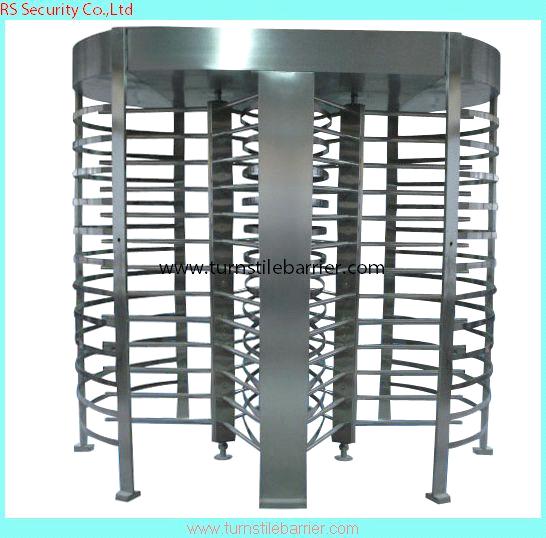

The RS999A is 304#SS finished, designed to combine the functions of two single rotor turnstiles into one turnstile.. Two rotors allow four possible control points, two entries and two exits. Each rotor can be controlled in one or two directions. The complete stainless steel construction is suited for interior or exterior application

Specifications

Framework: stainless steel tube 304# SS

Dimension: 1500*1500*2350MM

Barrier opening time: 0.2 second

Transit speed: 30/minute

Relative humidity: <=90%, no condensation

communication port: standard RS485, distance<=1200meters

Input port: dry contact, or +12v level signal, or DC12V pulse signal with its pulse width>=100ms, drive current>=10mA.

Features

Passing direction: one-way or two-way. Several working methods available,

Card in, card out, card in, free exit, free in, card exit. .

Automatic reset function: Lock automatically if people do not pass within the preset time. passing time is adjustable

Unique bi-direction anti-rotation function,

Passable on power failure

Lighting notice: passing direction indication

Control board has counting function and LED display function (optional)

Control board has memory function to meet group passing.

Adopt optics hole location working principle, has no time delay

Demand for inputting control signal

Working environment: indoor, outdoor (shelter)

Size of card reading window: equipped with standard installing holder, or customized

Remarks: there would be a little discrepancy between real product and sample
