Home >Products Catalog > ATV/UTV rubber track system

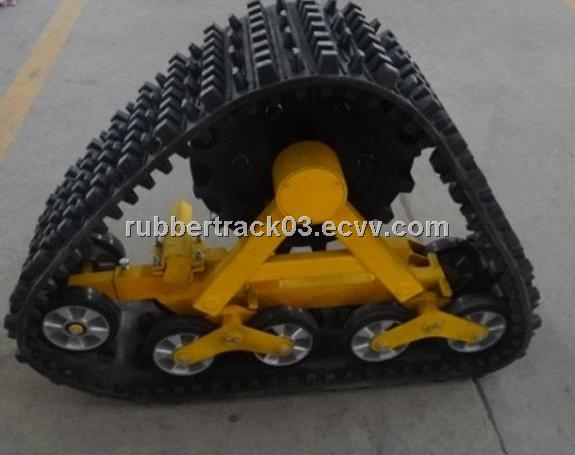

ATV/UTV rubber track system

FOB Price:	600.00 - 1,200.00 USD/Set
Supply Ability:	5,000 Set/Sets per Month
Shipping:	usually by ship
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China
Packaging Details:	Simple cartonbox/Iron Frame

Quick Details

Material: Steel
Brand Name: JY
Model Number: JY-255C
ground contact length: 550mm
length: 862mm
width: 255mm
height: 550mm
sprocket center distance to theground: 403.5mm
loading bearing: 3tons
applicable type of vehicles: for 200CC-500CC UTV/ATV etc
net weight: 34kg

Specifications

1.The track system is light weight building,using lightweight wheels and structural steel frame or aluminum frame, that keep the track units durable, without sacrificing performance.

2.Our track system is all season tracks, molded rubber composite design provides additional stability. The track is designed without perforated openings,preventing debris from entering through the track.Specially designed internal drive lugs continually work on sand,snow,mud out of the track,keeping track and framework clear of debris.

3.Easy maintenance with limited moving parts this system requires minimal maintenance for smooth operation and reliability.

1.Characteristics of rubber trackSystem:

1).Less damage to the ground surface

2).Low noise

3).High running speed

4).Less vibration

5).Low ground contack specific pressure

6).High tractive force

2. Application: For Small Robot, Wheelchair, Snowblower machine use.

3. Warranty: guarantee one year under normal use

4. Size specification: we would like to send you all by email attachment upon receiving your inquiry.
