Spiral square paper core machine /paper tube machine /square paper tube machine

Tube inner side length: 30mm-200mm
Tube wall thickness: 3-8mm
Paper plies: 8 plies (adjustable depends on thickness of paper ply and tube)
Machinery speed: 0-8m/min(dependson tube size,material quality, operator skill)
In-line cutting length: Adjustable 300-9999mm
In-line cutting tolerance: ±0.5mm
Cutting method: Automatically cut with single circular saw
Glue method: Double surface gluing

Control Type: numerical control (NC)
Power: 13.5KW/380V/50HZ/3 phases
Weight: ~3000kgs
Dimension: 4300mmX800mmX1500mm

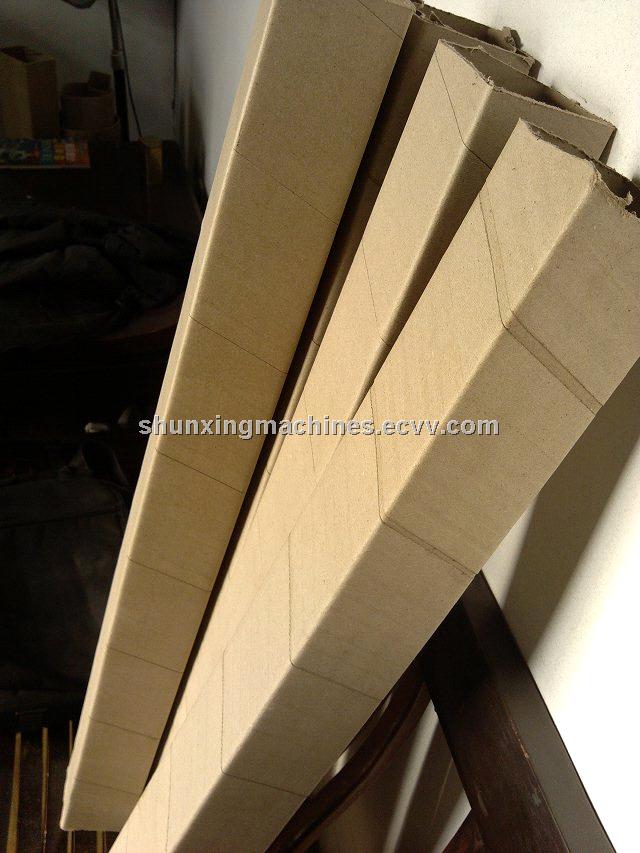

1  There is no special requirements for the paper width which is your slitting, The most of the square tube winding machine at present, the paper width is fixed and cannot be changed,but it is not required in this machine when making any size square tube or rectangle tube/ rectangular tube / Triangle tube / Pentagon tube.

2 Saw/cutting blade speed high, nice incision.

3  Simple and easy operation, it is not high technology requirements for the operator , Operation one time is learn, Don't need training long time.

4 Easyly and quickly change the core mould
