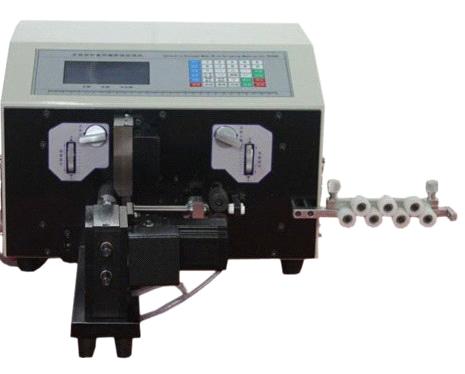

auto wire stripping twisting machine LM-10NX

Supply Ability:	888 Unit/Units per Month
Shipping:	within 5 days after the receipt of payment
Payment Terms:	T/T, Western Union

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	standard export packing

Quick Details

auto wire stripping twisting machine LM-10NX

Specifications as following:

Model:	LM-10NX
Power:	AC 110V/220V/ 50/60Hz
Power:	Rated 300W
Display:	Full English LCD Display
Cutting length:	1mm-100000mm
Twisting length	Line head 0-30, line tail 0-20
Twisting way	Both sides or one side
Stripping length:	Line head 0-30, line tail 0-20
Cutting Tolerance:	(0.2±0.002xL) mm
Max. Middle Stripping Section:	13
Core cross-section cut-line:	0.1~2.5mm2 ( AWG16#-AWG32#) Single up to 4.5mm2
Conduit diameter:	6
Appropriate wire stripping:	PVC, Teflon, glass and wire
Blade Material:	Hard tungsten steel
Stripper speed (Article / h):	L=100mm, 3000-10000pcs/h
Drive Mode:	Four-wheel drive
Weight:	40kg
Dimensions:	450365265(mm)
Adjustable speed	0-9
