Shijiazhuang Coal Mining Machinery Co., Ltd.
China Manufacturer with main products: Roadheader, Rock Drilling Machine, Side Dumping Rock Loader, Jumbo, Roof Bolter, Drilling Machine, Truck-Mounted Crane, Shearer |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Packaging Details: | POLYWOOD BOX |
Quick Details
- Condition: New
- Application: material handling
- Rated Loading Capacity: 1 ton
- Rated Lifting Moment: 20 kN.m
- Max. Lifting Load: 1 ton
- Max. Lifting Height: 3.8
- Span: 2430mm
- Brand Name: SHIMEI

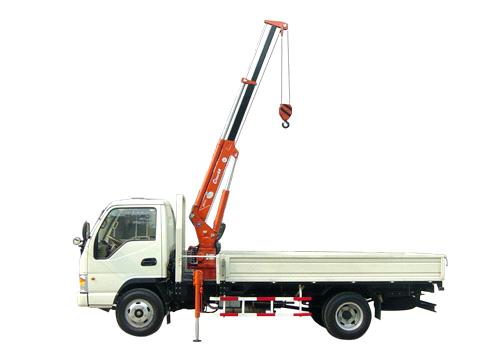

- Model Number: QYS-1.0II
- Certification: ISO9001
- Warranty: 12 MONTH
- After-sales Service Provided: Engineers available to service machinery overseas
Specifications
Model: QYS-1.0II CRANE SPECIFICATIONSCRANE CAPACITY: 1000KGS at 2mBOOM 3 sectioned, fully hydraulic telescoping boom
Retracted length 1.47m
Extended length 3.48m
Extending speed 2.01m/18sec.
Elevation Double-acting hydraulic cylinder
Elevating speed 0°to 70°/6 sec.
Boom point 2 sheaves
WINCH Hydraulic motor driven gear speed reduction, provided with worm self-lock brake
Single line pull 300kgs
Single line speed 30m/min (at 4th layer)
Wire rope
Diameter × length
6mm×20m
Rock block double sheave
SWING Hydraulic motor driven (worm gear and rod)
Swing speed 240°/17 sec.
Clockwise or counter-clockwise 180°
OUTRIGGER Hydraulic cylinders, integral with crane frame
Power up and down
Extended width 870mmand1080mmto left
Fixed1200mmto right:
HYDRAULICS Hydraulic pump gear pump
Hydraulic motor Cycloid hydraulic motor
Control valve Multiple control valve with integral safety valve
Oil reservoir capacity 35L
SAFETY DEVICES Safety device: with overflow valve in the hydraulic system, with balance valve and hydraulic lock for each cylinder, with auto mechanical of hydraulic brake for hoisting mechanism. Also optional over wind alarm for cable wire or prevent over wind device, optional moment protector, optional swivel limit device.
CRANE WEIGHT Approx. 500kgsNote: Operating speeds of the crane are guaranteed under the condition that the pump delivery is25L/min
Max. Lifting Moment: 20kN.m
Max. Lifting Height: 4.8m
Max. Working Radius:3.26m
Lifting capacity at different working radius:
|
WORKING RADIUS AND LIFTING CAPACITY |
|||||||
|
BOOM LENGTH (M) |
WORKING RADIUS (M) |
||||||
|
1.25 |
1.5 |
2.0 |
2.26 |
2.5 |
3.0 |
3.26 |
|
|
LIFTING CAPACITY (KGS) |
|||||||
|
1.55 |
1000 |
||||||
|
2.56 |
1000 |
1000 |
1000 |
750 |
|||
|
3.56 |
600 |
550 |
500 |
450 |
400 |
350 |
300 |
Max. moment: 20kN.m
Max. lifting capacity: 1000kgs
Max. lifting height:3.8m
Max. working radius:3.26m
Boom angle: 0°-70°
Swing: ±180°
Hydraulic system pressure: 10Mpa
Weight of crane: approximate 550kgs
