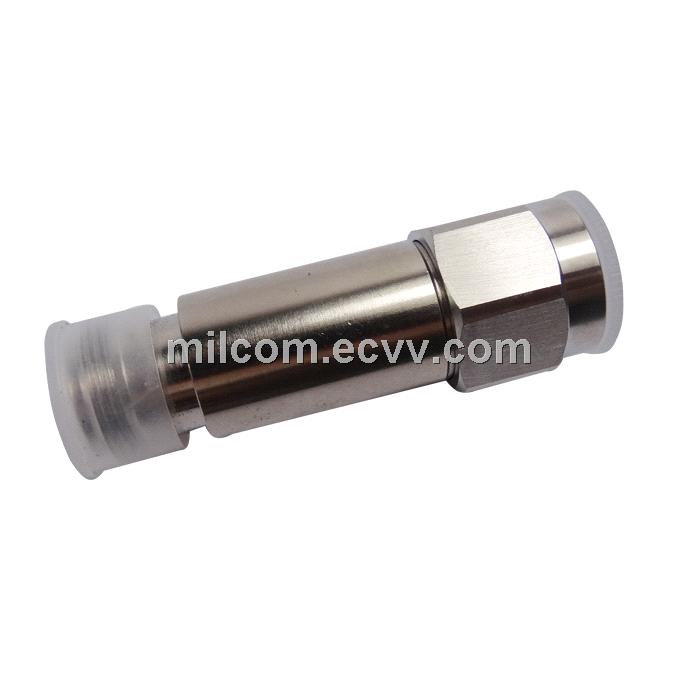

RF DC block N 2/5W, 3/6G

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

Applications:

1.DC block prevent the flow of direct current or of signals with low transmission frequencies while allowing RF transmission to proceed smoothly at the same time.

2.Applications include the blocking of current surges that can occur in subway tunnels and rail systems, at base-station/cell-sites during lightening storms, to route DC to tower mounted amplifiers (TMA's) .

Technical Specifications:
NORMINAL IMPENDANCE	50Ω	FREQUENCY RANGE	DC to 3.0GHz
VSWR	1.20 Maximum	POWER RATING	2 watts average
TEMPERATURE RANGE	-55°C to +125°C	INSERTION	0.8DB
