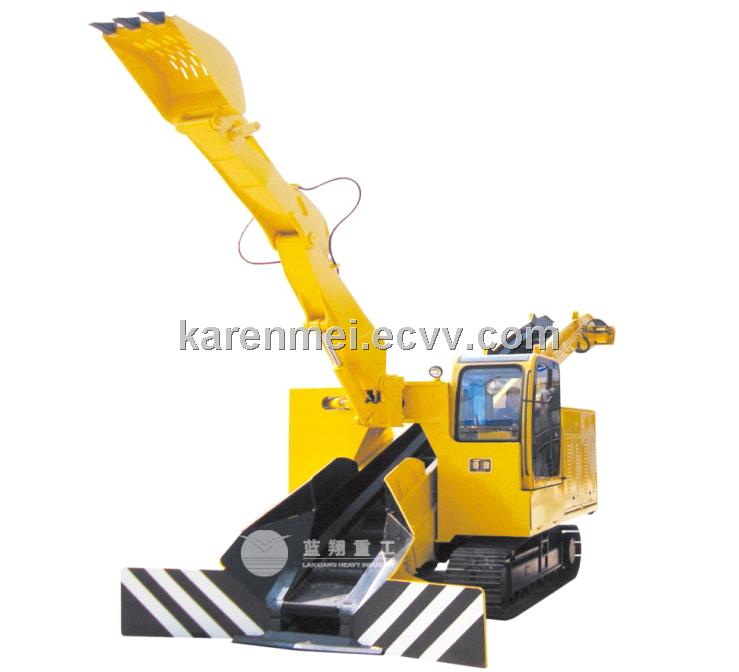

mucking rock loader ZWY-220/75L

FOB Price:	100,000.00 USD/Set
Supply Ability:	200 Set/Sets per Month
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangxi in China

Quick Details

Brand Name: lanxiang
Model Number: ZWY-220/75L
digging width: 7500mm
dumping height: 3500mm
conveyor inner width: 800mm
digging depth: 1100mm

Specifications

Product advantages

1. As a kind of tunneling mucking machine/equipment, Crawler mucking loaderputs rock into the transportation machine by crawler pushing.

2. The scraper transportation machine transfers the rock into unload-self bus or shuttle tramcar from rear. Meantime, it snatches at the far rock by the reverse excavation arm and clears working face by the bucket.

3. adopts entirely the hydraulic drive by electric control, the configuration is compact, propulsion power is big and the extension of snatching is wide. It can load rocks in a complete cross-section and not remain dead angle, which doesn't need to clear the working face by man assistant. This model is designed for working in big slope lanes

Technical parameter

Item		Unit	Parameters
Digging width		mm	7500
Digging height		mm	6400
Dumping height		mm	3500
Dumping distance		mm	4500
Digging depth		mm	1100
Conveyor inner width		mm	800
Tracked inside width		mm	1450
Aggregate plate width		mm	2800
Speed of scraper chain		m/s	0.2-0.65
System pressure		Mpa	31.5
Oil temperature of work		℃	≤80
Weight		t	≤23.2
Overall dimension	L	mm	10300
	W	mm	2800
	H	mm	3830
Min. turning radius		mm	430
Grade ability		°	36
Main motor		KW	75/90KW/380V(660/1140)
Adaptive tunnel dimension(W×H)		m	4.0×4.5

Note: The above-mentioned parameters are only for reference. They may be different from the actual parameters
