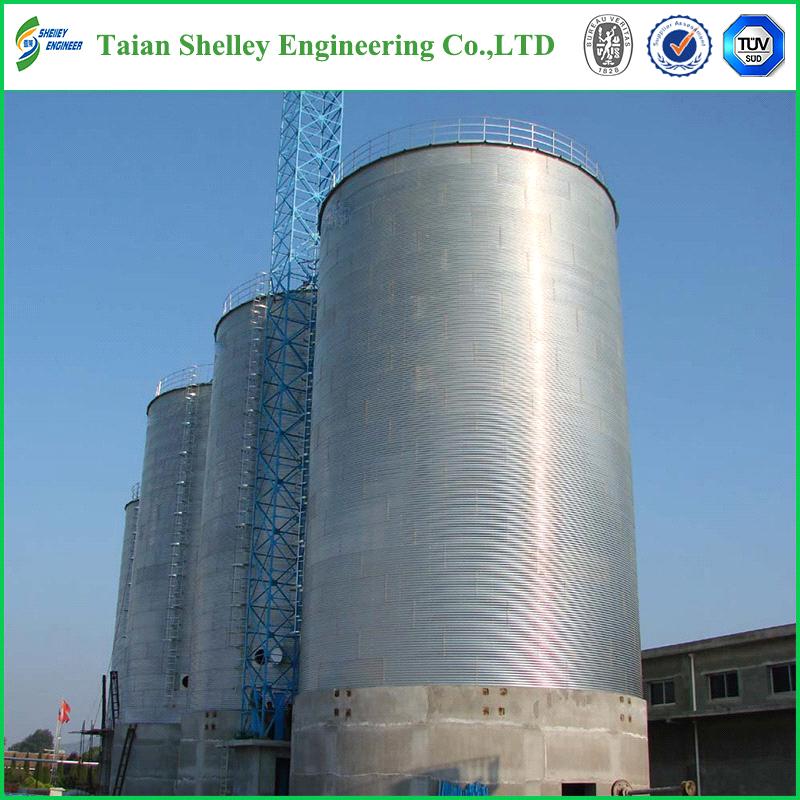

Cotton Seeds Storage Steel Silo

Cotton Seeds Storage Steel Silo

The best quality and service, not the lowest but the most reasonable price !

Brief Introduction:

Taian Shelley Engineering Co., Ltd is a professional manufacture in producing grain steel storage silos. Our silos are widely used in storing grain (such as wheat, corn, maize, rice, paddy, malt, barley, soybean, etc.), seeds, feeds, flour, plastic pellet (such as PP Pellet, PA Pellet, PVC Pellet), wooden pellet, etc;

 We could calculate, design, manufacture and install grain silo system according to customer requirements. The silo capacity ranges from 10Ton to 10000Ton. All silos are made of hot dip galvanized steel sheets with 275g/m2 galvanized coating.

 1.What is the application of the flat bottom silo?

Flat bottom steel silo is used to store grain, seed, feed, cement, coal and other granular or powdered materials. Popular uses for our product include, Temporary Transit, Raw Material, and Grain warehouses. Current applications of the Bolted Steel Silo is to  provide  efficient and affordable storage solutions for grain warehousing, alcohol plant, flourmill, oil mill, starch factory, feed mill, malt factory, distilleries, seaport, farm, and grain-processing centers, etc.(Grain including: Wheat /corn /soybean /sorghum /buckwheat /cereal /paddy /millet /bran /rice /peas /beans /rapeseeds /beet seeds /peanut /rye)

2.What is the Features of the flat bottom silo?

1.Flat bottom silo, cheaper than hopper bottom silo with the same capacity .

2.Flat bottom silo capacity is 10tons —10000tons, larger capacity than the hopper bottom steel silo .

3.Flat bottom steel silo sidewall is rolled-formed using high quality galvanized; prime high tensile steel up to 450MPa.

4.Grain near the bottom can not flow out ,so, we need add one sweep auger, for unloading the grain, the sweep auger need power.

5. With larger capacity, the flat bottom steel silo will need more on concrete foundation.

3.What is the structural outline of this silo?

 The structure consists of three parts: The roof, the body and the bottom.

1. Roof

 Roof is made up of radiated beam, roof cover board, tension ring, ventilatorscoop, roof cap, etc.

 The space age construction technology, which is adopted in the design of the silo framework, can ensure the stability of silo under the large span. There is a guardrail around the silo eaves and there is also a manhole on top of the roof.

2. The Silo Body

 Include the wall plate, column, manhole, roof ladders and so on.

 (1) The wall plate

 Our steel is hot galvanized, which makes it durable and weather resistant. Our advanced bolts with spherical washer and the resisting-worn rubber are used to ensure the tightness and using period.

 (2) Column

 The column, made by the Z-bar, is used to reinforce the silo body. It is connected by junction panels.

 (3) Manhole and Roof Ladders

 There are inspection door and ladders inside and outside the silo body. It is convenient and accessible for any maintenance work.

 3.Silo bottom

Instead of steel hopper and legs , the hopper and legs are made of concrete and which is one part of foundation;

  4.Do you want to know more about  Cleaning  and  dedust system and ventilation system?

 Clean and dedust system

1.Pre-cleaning sieve Double drum pre-cleaner can effectively clean out light impurities big impurities, fine impurities etc. from grain; With the inclination angle screen drum and the independent support plus the aspiration device ,the pre- cleaner is featured  with   steady  operation  and  good  cleaning effect. The capacity range is 10-200t/h,it is applicable  to industries of corn deep-processing, oil and fat, feeding  stuff  and  so  on.

2.Suction separator Suction separator is a winnowing device. It's used for separating light dust. It can be placed both in front of and behind the pre-cleaner.

3.Cyclone is used for clean big dust

And also have some other dedust system, we can supply it according to your requirement.

We can supply it according to your requirement.

Ventilation system

Ventilation for Flat bottom silo Ventilation System includes Natural ventilation vents,

Suction Fan, Ventilation Blower, Ventilation channel with net sheets;

 5.Do you worry about installation on your site?

 The installation of silos can be carried out by different ways.

 If the client wants to install silos by themselves, we could offer detailed instruction, and we'll give our quickest response to deal with any question in the process.

 *We could also send our engineer to supervise the installation process. The client could find local workers for the installation work and our engineer will help them during the process.

*If the client needs, we could send our installation team for the whole installation issue.

 6.Would you like some other accessory equipment such as conveyor,elevator and so on ?

7.Would you like to see our silo project we made before?

8.Do you want to know how we shipment.

We can provide a variety of shipping way, shipping, railway transportation and multimodal transport are acceptable

9.Do you worry about our silo quality ?

ISO 9001 Certificate & BV Certificate and our installation team

10.Do you want to know how we can provide you with the service?

1.We can provide the install service, but you should pay the travelling expenses, accommodation fee, wage to the engineer

2.Our products can give you one year warranty for free

11.Would you like to see our customers we welcomed before ?

If you want to get lower cost and high quality galvanized grain steel silo .Contact us now .

We are always here waiting for you!!!!!!
